XR16M2650 High Performance Low Voltage DUART with 32-Byte FIFO

The XR16M26501 (M2650) is a high performance dual universal asynchronous receiver and transmitter (UART) with 32 bytes TX and RX FIFOs. The device operates from 1.62 to 3.63 volts and is pin-to-pin and software compatible to the ST16C2550, XR16V2550 and XR16V2650. It supports Exar's enhanced features of selectable FIFO trigger level, automatic hardware (RTS/CTS) and software flow control, and a complete modem interface. Onboard registers provide the user with operational status and data error flags. An internal loopback capability allows system diagnostics. Independent programmable baud rate generators are provided in each channel to select data rates up to 16 Mbps at 3.3 Volt with 4X sampling clock. The M2650 is available in 48-pin TQFP and 32-pin QFN packages.

技术特性
  • o1.62 to 3.63 Volt Operation
  • Pin-to-pin and software compatible to ST16C2550 in the 48-TQFP package
  • Pin-to-pin and software compatible to XR16L2550, XR16V2550 and XR16V2650
  • Two independent UART channels
    • Register set is 16550 compatible
    • Data rate of up to 16 Mbps at 3.3 V
    • Data rate of up to 12.5 Mbps at 2.5 V
    • Data rate of up to 8 Mbps at 1.8V
    • Fractional Baud Rate Generator
    • Transmit and Receive FIFOs of 32 bytes
    • Selectable TX and RX FIFO Trigger Levels
    • Automatic Hardware (RTS/CTS) Flow Control
    • Automatic Software (Xon/Xoff) Flow Control
    • Wireless Infrared (IrDA 1.0) Encoder/Decoder
    • Automatic sleep mode
    • Full modem interface
  • Device Identification and Revision
  • Crystal oscillator (up to 24MHz) or external clock (up to 64MHz) input
  • 48-TQFP and 32-QFN packages
  • Pb-Free, RoHS Compliant Versions Offered

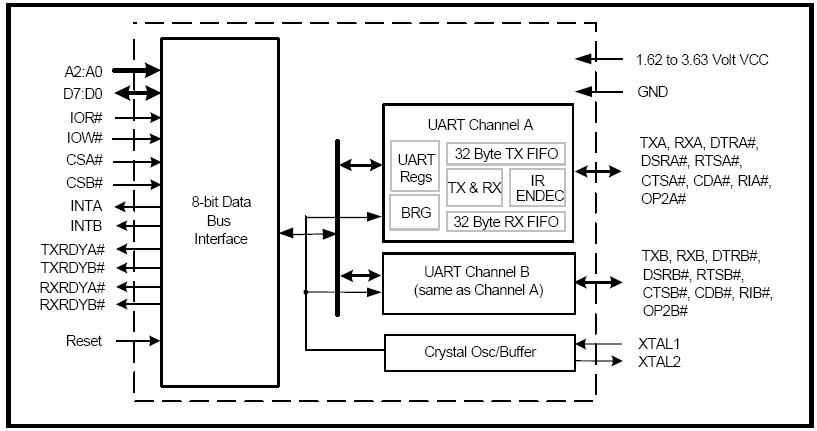

功能框图 Functional Block Diagram

XR16M2650 功能框图

技术指标
中央处理器接口 Intel
频道 2
数据传输速率@5/3.3/2.5V na/16/12.5
Max Data Rate @ 5/3.3/2.5/1.8V (Mbps) na/16/12.5/8
发送器/接收器FIFO(Bytes) 32/32
发送器/接收器FIFOCtrs No
发送器/接收器FIFOINT Trig 4 Levels/ 4 Levels
自动RTS/CTS Yes
IrDa供应 Yes
5VTol输入 No
电压供应 1.62-3.63
封装 TQFP-48, QFN-32
应用领域 APPLICATION
  • Portable Appliances
  • Telecommunication Network Routers
  • Ethernet Network Routers
  • Cellular Data Devices
  • Factory Automation and Process Controls
订购信息 Ordering Information
器件型号 有害物质限制 最低温度 最高温度 状态 立刻购买 申请样片
XR16M2650IL32-F -40 85 Active
XR16M2650IL32TR-F -40 85 Active
XR16M2650IM48-F -40 85 Active
XR16M2650IM48TR-F -40 85 Active



应用技术支持与电子电路设计开发资源下载 版本信息 大小
XR16M2650 数据资料DataSheet下载:pdf Rev.V2 2 页
