XRD9827 12-Bit Linear CIS/CCD Sensor Signal Processor with Serial Control

The XRD9827 is a 3-channel, 12-bit linear (A/D) processor for Contact Image Sensor (CIS) and Charged Coupled Device (CCD) systems. It combines the analog front end (AFE) with the analog-to-digital functions on a single chip. It offers a low-cost, highly integrated solution for (CIS) scanners and copiers that have resolutions up to 600 DPI. The XRD9827 also offers a Charge Coupled Device (CCD) mode. It is suitable for 3-channel CCD applications in pixel-by-pixel mode. An internal clamp sets the proper black level for CCD outputs. Applications include sheet-fed and flat-bed scanners, multifunction products (combining copier, fax and scanner functions), digital copiers, bar code readers, and fingerprint scanners. The XRD9827 has a mux, S&H, CDS, and 12-bit A/D. In addition to 12-bit resolution and speeds up to 6 MSPS, the XRD9827 offers 3V and 5V operation. It is the lowest cost solution available today.

技术特性

12-Bit Resolution, No Missing Codes
One-channel 6MSPS Pixel Rate
Triple-channel 2MSPS Pixel Rate
6-Bit Programmable Gain Amplifier
8-Bit Programmable Offset Adjustment
CIS or CCD Compatibility
Internal Clamp for CIS or CCD AC Coupled Configurations
3.3V or 5V Operation & I/O Compatibility
Serial Load Control Registers
Low Power CMOS: 200mW-typ
Low Cost 20-Lead Packages
USB Compliant
Pb-Free, RoHS Compliant Versions Offered

应用领域 APPLICATION

Color and Grayscale Flatbed Scanners
Color and Grayscale Sheetfed Scanners
Multifunction Peripherals
Digital Color Copiers
General Purpose CIS or CCD Imaging
Low Cost Data Acquisition
Simple and Direct Interface to Canon 600 DPI Sensors

技术指标

频道数量	3
CDS(CCD Input)	Yes
S&H/T&H(CIS Input)	Yes
PGA解析度	6-Bit
抵消范围	8-Bit
A/D解析度	12-Bit
A/D速度	6-MSPS
电压供应	3V or 5V
电力(Typ)	200mW
封装	SOIC-20

订购信息 Ordering Information

器件型号	有害物质限制	最低温度	最高温度	状态	立刻购买	申请样片
XRD9827ACU-F		0	70	Active
XRD9827ACUTR-F		0	70	Active

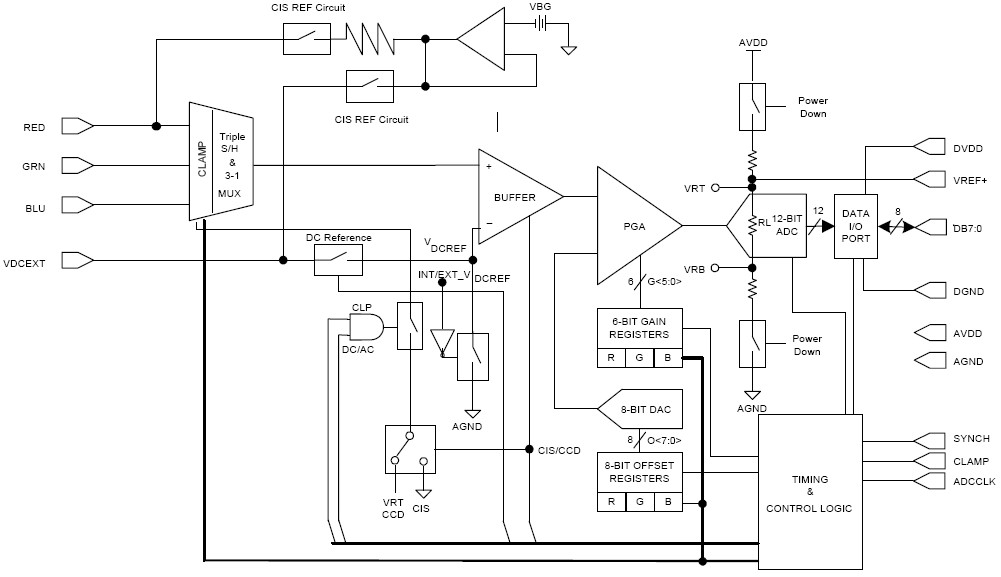

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
XRD9827 数据资料DataSheet下载:pdf	Rev.V2	2 页
