XRD98L23 8-Bit, High-speed Linear CIS/CCD Sensor Signal Processor with Serial Control

The XRD98L23 is a complete linear CIS or CCD sensor signal processor on a single monolithic chip. The XRD98L23 includes a high speed 8-bit resolution ADC, a 6-bit Programmable Gain Amplifier with gain adjustment of 1 to 10, and a typical 8-bit programmable input referred offset calibration range of 480mV. In the CCD configuration the input signal is AC coupled with an external capacitor. An internal clamp sets the black level. In the CIS configuration, the clamp switch can be disabled and the CIS output signal is DC coupled from the CIS sensor to the XRD98L23. The CIS signal is level shifted to VRB in order to use the full range of the ADC. In the CIS configuration the input can also be AC coupled similar to the CCD configuration. This enables CIS signals with large black levels to be internally clamped to a DC reference equal to the black level. The DC reference is internally subtracted from the input signal.

技术特性
  • 8-Bit Resolution, No Missing Codes
  • One-channel 10MSPS Pixel Rate
  • Dual-channel 5MSPS Pixel Rate
  • Three-channel 3 MSPS Pixel Rate
  • 6-bit Programmable Gain Amplifier
  • 8-bit Programmable Offset Adjustment
  • CIS or CCD Compatibility
  • Internal Clamp for CIS or CCD AC Coupled Configurations
  • 3.3V Operation & I/O Compatibility
  • Serial Load Control Registers
  • Low Power CMOS: 100mW-typ
  • Low Cost 20-Lead Packages
  • USB Compliant
  • Pb-Free, RoHS Compliant Versions Offered
应用领域 APPLICATION
  • Check Scanners
  • General Purpose CIS or CCD Imaging
  • Low Cost Data Acquisition
  • Simple and Direct Interface to Canon 600 DPI Sensors
技术指标
频道数量 3
CDS(CCD Input) Yes
S&H/T&H(CIS Input) Yes
PGA解析度 10-Bit
抵消范围 10-Bit
A/D解析度 16-Bit
A/D速度 15-MSPS
电压供应 3.3V
电力(Typ) 300mW
封装 TSSOP-48
订购信息 Ordering Information
器件型号 有害物质限制 最低温度 最高温度 状态 立刻购买 申请样片
XRD98L23ACD-F 0 70 Active
XRD98L23ACDTR-F 0 70 Active
XRD98L23ACU-F 0 70 Active
XRD98L23ACUTR-F 0 70 Active

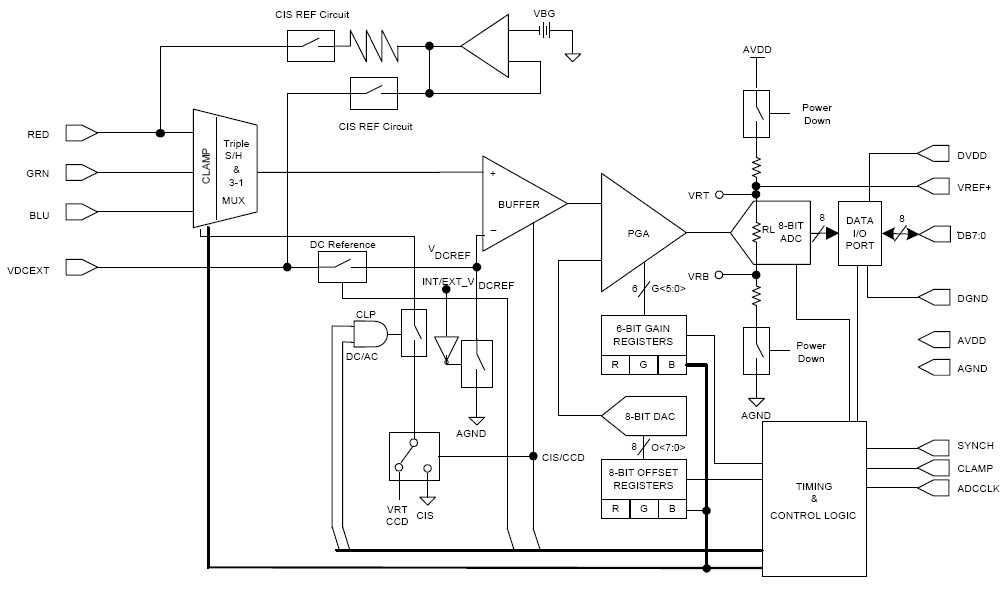

功能框图 Functional Block Diagram

XRD98L23 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
XRD98L23 数据资料DataSheet下载:pdf Rev.V2 2 页
