XRD98L62 CCD Image Digitizer with CDS, PGA, and 12-Bit A/D

The XRD98L62 is a complete, low power CCD Image Digitizer for digital motion and still cameras. The product includes a high bandwidth differential Correlated Double Sampler (CDS), 10-bit digitally Programmable Gain Amplifier (PGA), 12-bit Analog-to-Digital Converter (ADC), and improved digitally controlled black level auto-calibration circuitry with programmable pixel averager, hot pixel clipper and a DNS filter.

技术特性
  • 12-bit Resolution ADC
  • 30MHz Sampling Rate
  • 10-bit Programmable Gain: 0dB to 36dB PGA
  • Digitally Controlled Offset-Calibration with Pixel Averager and Hot Pixel Clipper
  • DNS Filter Removes Black Level Digital Noise
  • Widest Black Level Calibration Range at Maximum Gain
  • 1ns/step Programmable Aperture Delay on SPIX, SBLK and ADCLK
  • Manual Control of Offset DAC via Serial Port for use with High-speed Scanners
  • Single 2.7V to 3.6V Power Supply
  • Optimize Power with External Resistor to 180mW
  • View Finder Mode, 6-bit Resolution, 25% Less Power
  • Low Power for Battery Operation
  • Two Serial Controlled 8-bit D/A Converters
  • 0.5mA Stand-by Mode Current
  • Three-state Digital Outputs
  • 2,000V ESD Protection
  • 48-pin TQFP Package
  • Pb-Free, RoHS Compliant Versions Offered
应用领域 APPLICATION
  • Mega pixel Digital Still Cameras
  • Digital Camcorders
  • 3 CCD Professional/Broadcast Camera
  • Line Scan Cameras
  • PC Video Cameras
  • CCTV/Security Cameras
  • Industrial/Medical Cameras
  • 2D Bar Code Readers
  • High Speed Scanners
技术指标
频道数量 1
CDS(CCD Input) Yes
S&H/T&H(CIS Input) Yes
PGA解析度 10-Bit
抵消范围 10-Bit
A/D解析度 12-Bit
A/D速度 30-MSPS
电压供应 3V
电力(Typ) 180mW
封装 LQFP-48
订购信息 Ordering Information
器件型号 有害物质限制 最低温度 最高温度 状态 立刻购买 申请样片
XRD98L62AIV-F -40 85 Active

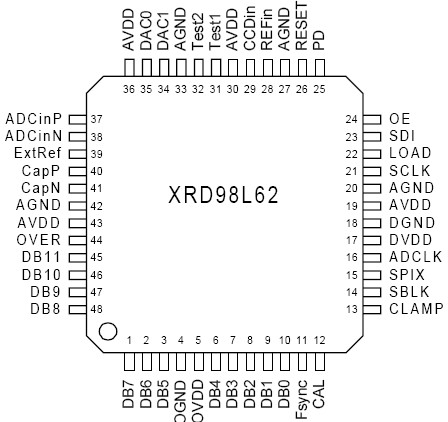

功能框图 Functional Block Diagram

XRD98L62 功能框图



应用技术支持与电子电路设计开发资源下载 版本信息 大小
XRD98L62 数据资料DataSheet下载:pdf Rev.V2 2 页
