XRT7296 DS3/STS-1/E3 Integrated Line Transmitter
The XRT7296 is a fully integrated PCM Line Driver IC intended for DS3 (44.736Mbps) or E3(34.368Mbps) applications. It can also be used for transmitting SONET STS-1 (51.84Mbps) signals over coaxial cable. The IC is designed to complement either XRT7295 DS3/SONET STS-1 or XRT7295E E3 Integrated Line Receivers. The XRT7296 converts input clock and dual-rail unipolar data into AMI pulses according to AT&T Technical Advisory No. 34 or CCITT G.703 recommendations
技术特性
- Fully Integrated Transmit Interface for DS3/E3/STS-1
- Integrated Pulse Shaping Circuit
- Compliance with Compatibility Bulletin 119, CCITT Recommendations G.703 and G.824, Bellcore TR-NWT-000499, ANSI T1.404
- Built-in Encoder/Decoder
- Single 5V Power Supply
- Pb-Free, RoHS Compliant Versions Offered
应用领域 APPLICATION
- Interface for SONET and DS3/E3 Network Equipment
- Digital Cross Connect Systems
- CSU/DSU Equipment
- PCM Test Equipment
- Fiber Optic Terminals
订购信息 Ordering Information
| 器件型号 |
有害物质限制 |
最低温度 |
最高温度 |
状态 |
立刻购买 |
申请样片 |
| XRT7296IW |
|
-40 |
85 |
Active |
|
|
| XRT7296IW-F |
|
-40 |
85 |
Active |
|
技术指标
| 频道数量 |
1 |
| 数据传输速率(s) |
DS3, E3, STS-1 |
| Clk Rec |
No |
| 短途/长途 |
n/a |
| 温度.范围 |
Ind. |
| OpPwr Sup/Max Cur |
5V ±5%, 133mA |
| 封装 |
SOJ-28, PDIP-28 |

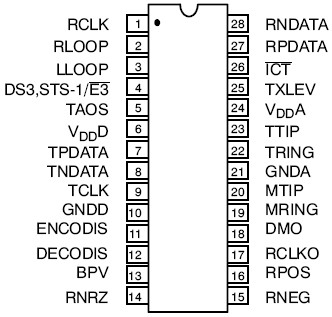

功能框图 Functional Block Diagram
|
