XRT7300 DS3/E3/STS-1 Line Interface Unit

The XRT7300 is a full featured Line Interface Unit (LIU). In the transmit direction, it accepts digital clock and data from the terminal equipment, usually a TDM framer (XRT7250), or an ATM UNI (XRT7234/XRT7245). It optionally encodes the data, and converts it into the appropriate pulse shapes for transmission over coaxial cable. In the receive direction, it accepts a bipolar signal from the line, optionally performs equalization, converts the line signal into a dual rail binary data stream, recovers the clock, optionally decodes the data, and coverts it into a dual rail digital signal.

技术特性
  • Meets E3/DS3/STS-1 Jitter Tolerance Requirements
  • Full Loop-Back Capability
  • Transmit and Receive Power Down Modes
  • Full Redundancy Support
  • Contains a Four-Wire Microprocessor Serial Interface
  • Uses Minimum External components
  • Requires Single +5V Power Supply
  • -40°C to +85°C Operating Temperature Range
  • Available in a 44 pin TQFP package
  • Pb-Free, RoHS Compliant Versions Offered
应用领域 APPLICATION
  • Interfaces to E3, DS3 or SONET STS-1 Networks
  • CSU/DSU Equipment
  • PCM Test Equipment
  • Fiber Optic Terminals
  • Multiplexers
订购信息 Ordering Information
器件型号 有害物质限制 最低温度 最高温度 状态 立刻购买 申请样片
XRT7300IV-F -40 85 Active
XRT7300IV -40 85 Active
技术指标
频道数量 1
数据传输速率(s) DS3, E3, STS-1
Clk Rec Yes
短途/长途 n/a
温度.范围 Ind.
OpPwr Sup/Max Cur 5V ±5%
封装 TQFP-44

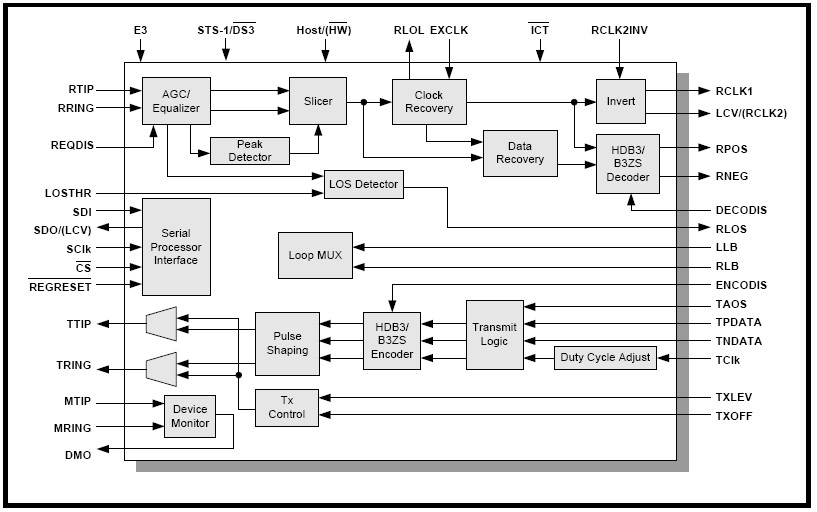

功能框图 Functional Block Diagram

XRT7300 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
XRT7300 数据资料DataSheet下载:pdf Rev.V2 2 页
