XRT75L00D Single-Chip Desynchronizer & J.A. for Mapping/Demapping between SONET/SDH & DS3/E3 Environments

The XRT75L00 is the next generation solution for the design challenges presented by jitter. Previously, Exar launched the XRT71D00, the industry's first standards compliant jitter attenuator for DS3/E3 applications. It was soon followed by the industry's first multi-channel jitter attenuators (XRT71D03 and XRT71D04).

技术特性
  • Receiver:
    • On-Chip Clock and Data Recovery Circuit for High-Input Jitter Tolerance
    • On-Chip B3ZS/HDB3 Encoder/Decoder Can be Disabled or Enabled
    Transmitter:
    • Tri-state Transmit Output Capability for Redundancy Applications
    • Transmitter Can be Turned On or Off
    Jitter Attenuator:
    • Jitter Attenuator Can be Selected in Receive or Transmit Paths
    • Selectable FIFO Size of 16 or 32 Bits
    Control and Diagnostics:
    • Five Wire Serial Microprocessor for Control and Configuration
    • Supports Optional Internal Transmit Driver Monitoring
    • Pb-Free, RoHS Compliant Versions Offere
订购信息 Ordering Information
器件型号 有害物质限制 最低温度 最高温度 状态 立刻购买 申请样片
XRT75L00DIV-F -40 85 Active
XRT75L00DIV -40 85 Active



技术指标
频道数量 1
数据传输速率(s) DS3, E3, STS-1
Clk Rec Yes
短途/长途 n/a
温度.范围 Ind.
OpPwr Sup/Max Cur 3V ±5%
封装 TQFP-52
应用领域 APPLICATION
  • E3/DS3 Access Equipment
  • STS-1-SPE to DS# Mapper
  • DSLAMs
  • Digital Cross Connect Systems
  • CSU/DSC Equipment
  • Routers
  • Fiber Optic Terminals

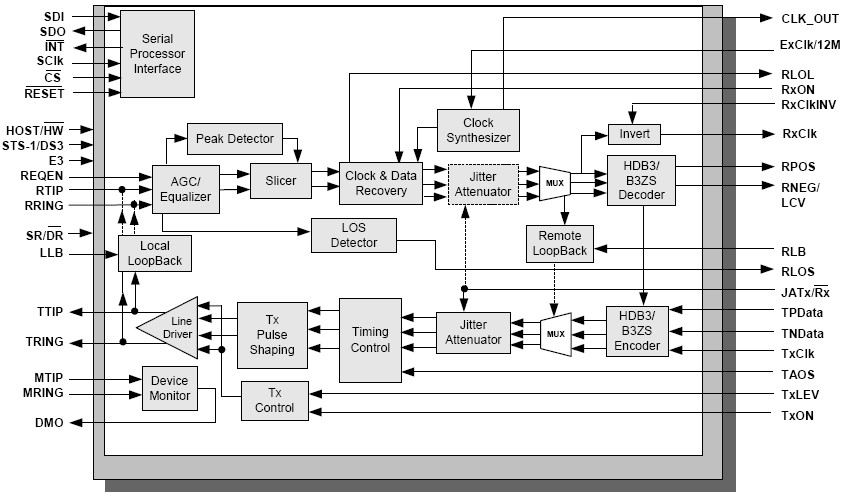

功能框图 Functional Block Diagram

XRT75L00D 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
XRT75L00D 数据资料DataSheet下载:pdf Rev.V2 2 页
