技术特性

• Receiver:
  • On chip Clock and Data Recovery circuit for high input jitter tolerance

  • Meets the jitter tolerance requirements as specified in ITU-T G.823_1993 for E3 and Telcordia GR-499-CORE for DS3 applications

  • Detects and Clears LOS as per G.775

  • Receiver Monitor mode handles up to 20 dB flat loss with 6 dB cable attenuation

  • On chip B3ZS/HDB3 encoder and decoder that can either be enabled or disabled

  • On-chip clock synthesizer generates the appropriate rate clock from a single frequency XTAL

  • Provides low jitter clock outputs for either DS3, E3 or STS-1 rates

  • On-chip clock synthesizer provides the appropriate rate clock from a single 12.288 MHz Clock

  • Provides low jitter output clock
  Transmitter:
  • Compliant with Bellcore GR-499, GR-253 and ANSI T1.102 Specification for transmit pulse

  • Tri-state Transmit output capability for redundancy applications

  • Transmitters can be turned on or off
  Jitter Attenuator:

  • On chip advanced crystal-less Jitter Attenuator

  • Jitter Attenuator can be selected in Receive or Transmit paths

  • 16 or 32 bits selectable FIFO size

  • Meets the Jitter and Wander specifications described in T1.105.03b,ETSI TBR-24, Bellcore GR-253 and GR-499 standards

  • Jitter Attenuators can be disabled
  Control and Diagnostics:
  • 5 wire Serial Microprocessor Interface for control and configuration

  • Supports optional internal Transmit Driver Monitoring

  • PRBS error counter register to accumulate errors

  • Hardware Mode for control and configuration

  • Supports Local, Remote and Digital Loop-backs

  • Single 3.3 V ± 5% power supply

  • 5 V Tolerant I/O

  • Available in 100-pin TQFP

  • -40°C to 85°C Industrial Temperature Range

  • Pb-Free, RoHS Compliant Versions Offere

技术指标

应用领域 APPLICATION

• DS3 Access Equipment

• STS1-SPE to DS3 Mapper

• DSLAMs

• Digital Cross Connect Systems

• CSU/DSU Equipment

• Routers

• Fiber Optic Terminals

订购信息 Ordering Information

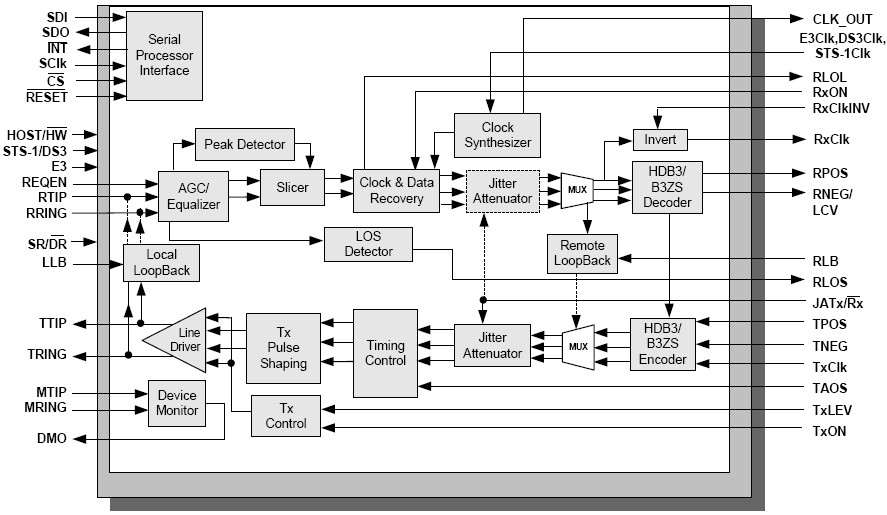

功能框图 Functional Block Diagram
