XRT75R06 6-Channel DS3/E3 Line Interface Unit (LIU) with Jitter Attenuator with R³ Technology™

The XRT75R06 is a six-channel DS3/E3 Line Interface Unit (LIU) with Jitter Attenuator with R3 TechnologyTM. It incorporates an independent receiver for each channel, transmitter and jitter attenuator, and supports E3 (34.368.Mbps), DS3 (44.736Mbps) and STS-1 (51.84 Mbps) modes of operation. The device has a differential receiver, which provides a high noise interference margin capable of receiving data from cables of over 1,000 feet or up to 12dB of cable attenuation. It contains an onboard Pseudo Random Binary Sequence (PRBS) generator and detector with the ability to insert and detect single bit error. This function can be used for diagnostic purposes. The device meets jitter and wander specifications described in the T1.105.03b, and ETSI TBR-24, and is compliant with jitter transfer templates outlined in ITU G.751, G.752 and G.755. It also provides a serial microprocessor interface as well as hardware mode for configuration and control.

技术特性
  • Receiver:
    • R3 TechnologyTM (Reconfigurable, Relayless, Redundancy)
    • On chip Clock and Data Recovery for high-input jitter tolerance
    • Meets DS3/E3/STS-1 Jitter Tolerance Requirements
    • Detects and Clears LOS as per G.775
    Transmitter:
    • Tri-state Transmit output capability for redundancy applications
    • Compliant with Bellcore GR-499, GR-253 and ANSI T1.102 Specification for transmit pulse
    • Transmitters can be turned on or off
    Jitter Attenuator
    • On-chip advanced crystal-less Jitter Attenuator for each channel
    • 16 02 32 bits selectable FIFO size
    • Meets ETSI TBR Jitter Transfer Requirements
    Control and Diagnostics:
    • Parallel Microprocessor Interface for control ands configuration
    • Each Channel supports Analog, Remote and Digital Loop-backs
    • Single 3.3V ± 5% power supply
    • Pb-Free, RoHS Compliant Versions Offere
技术指标
频道数量 6
数据传输速率(s) DS3, E3, STS-1
Clk Rec Yes
短途/长途 n/a
温度.范围 Ind.
OpPwr Sup/Max Cur 3V ±5%
封装 BGA-217
应用领域 APPLICATION
  • Digital Access and Cross Connect Systems
  • Routers
  • DSLAMs
  • Fiber Optic Terminals
订购信息 Ordering Information
器件型号 有害物质限制 最低温度 最高温度 状态 立刻购买 申请样片
XRT75R06IB-F -40 85 Active
XRT75R06IB -40 85 Active

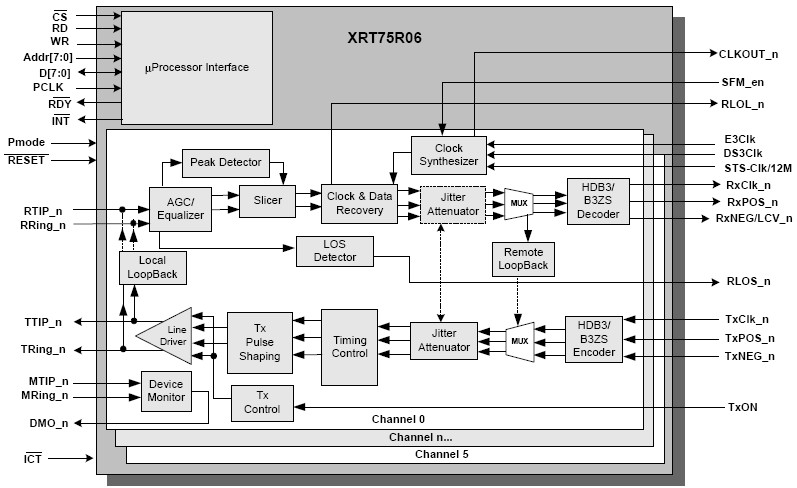

功能框图 Functional Block Diagram

XRT75R06 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
XRT75R06 数据资料DataSheet下载:pdf Rev.V2 2 页
