IXP425 网络处理器
Intel® IXP425 network processor is a highly integrated, versatile single-chip processor that can be used in a variety of products that need network connectivity and high performance to run their unique software applications. The Intel IXP425 network processor combines integration with support for multiple WAN and LAN technologies in a common architecture designed to meet requirements for high-end gateways, Voice over IP (VoIP) applications, wireless access points, SME routers, switches, security devices, Mini-DSLAMs (Digital Subscriber line Access Multiplexers), xDSL line cards, industrial control and networked imaging applications.
Common IXP4XX Product Line Architecture for Application Flexibility
All IXP4XX processors have a unique distributed processing architecture that speeds development for a range of applications. Each processor combines a high-performance Intel XScale® core with additional Network Processor Engines (NPEs) to achieve wire-speed packet processing performance. See the complete product brief to learn more.
IXP425 关键特性
- Member of the IXP4XX network processor product line for enterprise, small-to-medium enterprise (SME), residential and other networking applications
- Intel XScale® core at up to 533 MHz provides headroom for customer-defined applications
- Integrated hardware acceleration of popular cryptography algorithms (SHA-1, MD5, DES, 3DES, AES) for secure applications
- DSP software library on the Intel XScale core supports 2-4 voice channels and reduces system cost
- Two high-speed serial (HSS) ports for VoIP SLIC/CODEC or T1/E1
- Two integrated 10/100 Base-T Ethernet MACs with Media Independent Interface (MII) for design flexibility and cost-effective wire-speed performance
- UTOPIA 2 interface with multiple ADSL/G.SHDSL or VDSL support
- 33/66 MHz PCI v2.2 host and option interface for glueless connection of up to four devices
- SDRAM controller supports from 8 to 256 Mbytes of SDRAM memory
- Low system power consumption (1.0 -1.5 Watt typical)
- USB version 1.1 device controller
- Two high-speed UARTS support up to 921 Kbaud each
- Sixteen GPIO pins
- 16-bit configurable expansion bus
- Commercial (0° to 70° C) and extended temperature (-40° to +85° C) versions

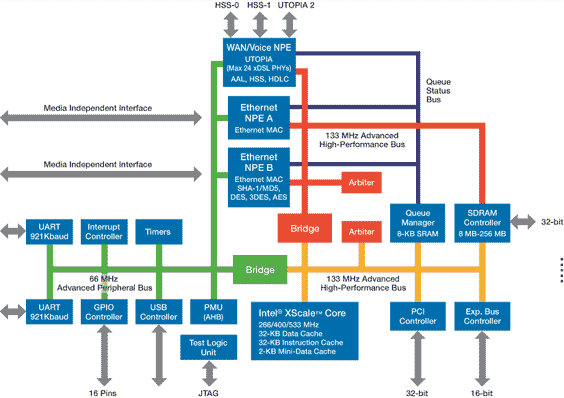

IXP425 Block Diagram
IXP425 订购型号
| Device | Stepping | Speed (MHz) | Extended Temp. | Lead Free | Part # |
| Intel® IXP425 | B-1 | 533 | Yes | Yes | EWIXP425ABDT |
| Intel® IXP425 | B-1 | 266 | Yes | Yes | EWIXP425ABBT |
| Intel® IXP425 | B-1 | 533 | Yes | PRIXP425ABD | |
| Intel® IXP425 | B-1 | 400 | Yes | PRIXP425ABC | |
| Intel® IXP425 | B-1 | 266 | Yes | PRIXP425ABB | |
| Intel® IXP425 | B-1 | 533 | Yes | GWIXP425ABDT | |
| Intel® IXP425 | B-1 | 400 | Yes | GWIXP425ABCT | |
| Intel® IXP425 | B-1 | 266 | Yes | GWIXP425ABBT | |
| Intel® IXP425 | B-1 | 533 | FWIXP425ABD | ||
| Intel® IXP425 | B-1 | 400 | FWIXP425ABC | ||
| Intel® IXP425 | B-1 | 266 | FWIXP425ABB |
IXP425 技术支持
- IXP425 数据手册DataSheet 下载 .pdf
Intel® IXP42X Product Line of Network Processors and IXC1100 Control Plane Processor - IXP425 产品概述 .pdf
