LTC4366-2 高电压浪涌抑制器
LTC®4366 浪涌抑制器可保护负载免遭高压瞬变的损坏。通过控制一个外部 N 沟道 MOSFET 的栅极，LTC4366 可在过压瞬变过程中调节输出。在 MOSFET 两端承载过压的情况下，负载可以保持运作状态。在返回线路中布设一个电阻器可隔离 LTC4366，并允许其随电源向上浮动；因此，输出电压的上限仅取决于高值电阻器的可用性和 MOSFET 的额定规格。
一个可调的过压定时器能在浪涌期间避免损坏 MOSFET，而一个附加的 9 秒定时器则为 MOSFET 提供了冷却周期。停机引脚负责在停机期间将静态电流减小至 14μA 以下。在一个故障发生之后，LTC4366-1 将锁断，而 LTC4366-2 则将执行自动重试操作。
产品特点 Features

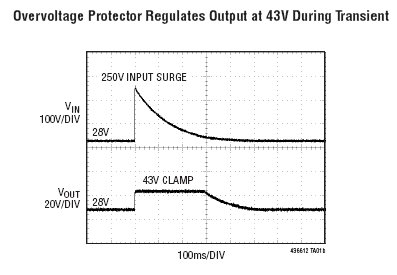

参数 |
应用
典型应用图 |
LTC4366-2 订购信息和价格参考Package Variations and Pricing
| 器件型号 | 封装 | 引脚 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) * |
| LTC4366CDDB-1#PBF | DFN | 8 | C | $3.79 | |
| LTC4366CDDB-1#TRMPBF | DFN | 8 | C | $3.79 | $2.70 |
| LTC4366CDDB-1#TRPBF | DFN | 8 | C | $3.79 | $2.65 |
| LTC4366CDDB-2#PBF | DFN | 8 | C | $3.79 | |
| LTC4366CDDB-2#TRMPBF | DFN | 8 | C | $3.79 | $2.70 |
| LTC4366CDDB-2#TRPBF | DFN | 8 | C | $3.79 | $2.65 |
| LTC4366CTS8-1#PBF | SOT | 8 | C | $3.79 | |
| LTC4366CTS8-1#TRMPBF | SOT | 8 | C | $3.79 | $2.70 |
| LTC4366CTS8-1#TRPBF | SOT | 8 | C | $3.79 | $2.65 |
| LTC4366CTS8-2#PBF | SOT | 8 | C | $3.79 | |
| LTC4366CTS8-2#TRMPBF | SOT | 8 | C | $3.79 | $2.70 |
| LTC4366CTS8-2#TRPBF | SOT | 8 | C | $3.79 | $2.65 |
| LTC4366HDDB-1#PBF | DFN | 8 | H | $5.00 | |
| LTC4366HDDB-1#TRMPBF | DFN | 8 | H | $5.00 | $3.55 |
| LTC4366HDDB-1#TRPBF | DFN | 8 | H | $5.00 | $3.50 |
| LTC4366HDDB-2#PBF | DFN | 8 | H | $5.00 | |
| LTC4366HDDB-2#TRMPBF | DFN | 8 | H | $5.00 | $3.55 |
| LTC4366HTS8-1#PBF | SOT | 8 | H | $5.00 | |
| LTC4366HTS8-1#TRMPBF | SOT | 8 | H | $5.00 | $3.55 |
| LTC4366HTS8-1#TRPBF | SOT | 8 | H | $5.00 | $3.50 |
| LTC4366HTS8-2#PBF | SOT | 8 | H | $5.00 | |
| LTC4366HTS8-2#TRMPBF | SOT | 8 | H | $5.00 | $3.55 |
| LTC4366HTS8-2#TRPBF | SOT | 8 | H | $5.00 | $3.50 |
| LTC4366IDDB-1#PBF | DFN | 8 | I | $4.36 | |
| LTC4366IDDB-1#TRMPBF | DFN | 8 | I | $4.36 | $3.10 |
| LTC4366IDDB-1#TRPBF | DFN | 8 | I | $4.36 | $3.05 |
| LTC4366IDDB-2#PBF | DFN | 8 | I | $4.36 | |
| LTC4366IDDB-2#TRMPBF | DFN | 8 | I | $4.36 | $3.10 |
| LTC4366IDDB-2#TRPBF | DFN | 8 | I | $4.36 | $3.05 |
| LTC4366ITS8-1#PBF | SOT | 8 | I | $4.36 | |
| LTC4366ITS8-1#TRMPBF | SOT | 8 | I | $4.36 | $3.10 |
| LTC4366ITS8-1#TRPBF | SOT | 8 | I | $4.36 | $3.05 |
| LTC4366ITS8-2#PBF | SOT | 8 | I | $4.36 | |
| LTC4366ITS8-2#TRMPBF | SOT | 8 | I | $4.36 | $3.10 |
| LTC4366ITS8-2#TRPBF | SOT | 8 | I | $4.36 | $3.05 |
| LTC4366MPDDB-1#PBF | DFN | 8 | MP | $11.36 | |
| LTC4366MPDDB-1#TRMPBF | DFN | 8 | MP | $11.36 | $8.00 |
| LTC4366MPDDB-1#TRPBF | DFN | 8 | MP | $11.36 | $7.95 |
| LTC4366MPDDB-2#PBF | DFN | 8 | MP | $11.36 | |
| LTC4366MPDDB-2#TRMPBF | DFN | 8 | MP | $11.36 | $8.00 |
| LTC4366MPDDB-2#TRPBF | DFN | 8 | MP | $11.36 | $7.95 |
| LTC4366MPTS8-1#PBF | SOT | 6 | MP | $11.36 | |
| LTC4366MPTS8-1#TRMPBF | SOT | 8 | MP | $11.36 | $8.00 |
| LTC4366MPTS8-1#TRPBF | SOT | 8 | MP | $11.36 | $7.95 |
| LTC4366MPTS8-2#PBF | SOT | 8 | MP | $11.36 | |
| LTC4366MPTS8-2#TRMPBF | SOT | 8 | MP | $11.36 | $8.00 |
| LTC4366MPTS8-2#TRPBF | SOT | 8 | MP | $11.36 | $7.95 |
LTC4366-2 数据手册及相关资料下载
- 数据手册(英文) : LTC4366-1/LTC4366-2 - High Voltage Surge Stopper.PDF
- 可靠性数据 : R547 Reliability Data .PDF
- 产品选型卡 : High Voltage Surge Stoppers.PDF
- 产品选型卡 : Overvoltage Surge Protectors.PDF
