MGF0843G L to C BAND / 20W non - matched

The MGF0843G, GaN HEMT with an N-channel schottky gate, is designed for MMDS/UMTS/WiMAX applications.

技术特性 Features
  • High voltage operation
    VDS=47V
  • High output power
    Po=40.5dBm(TYP.) @f=2.6GHz,P3dB
  • High efficiency
    d=60%(TYP.) @f=2.6GHz,P3dB
  • Designed for use in Class AB linear amplifiers
应用领域 APPLICATION
  • MMDS/UMTS/WiMAX
订购信息 Ordering Information
  • MGF0843G

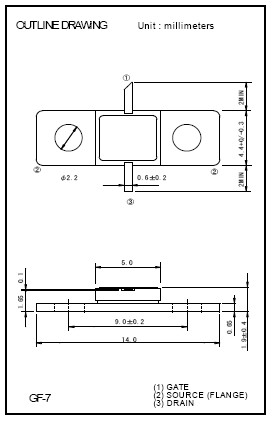

外观尺寸图 Outline Drawing

MGF0843G 外观尺寸图


应用技术支持与电子电路设计开发资源下载 版本信息 大小
MGF0843G 数据资料DataSheet下载:PDF Rev.V2 2 页
