技术特性 Features

• Class A operation

• Internally matched to 50(ohm) system

• High output power
  P1dB=24W (TYP.) @f=5.9 – 6.4GHz

• High power gain
  GLP=9.0dB (TYP.) @f=5.9 – 6.4GHz

• High power added efficiency
  P.A.E.=33% (TYP.) @f=5.9 – 6.4GHz

• Low distortion [item -51]
  IM3=-42dBc (TYP.) @Po=33.5dBm S.C.L

应用领域 APPLICATION

• item 01 : 5.9 – 6.4 GHz band power amplifier

• item 51 : 5.9 – 6.4 GHz band digital radio communication

订购信息 Ordering Information

• MGFC44V5964

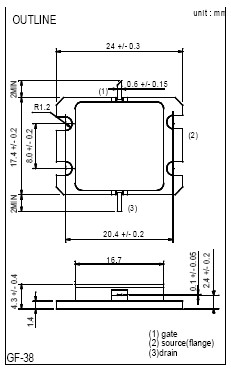

外观尺寸图 Outline Drawing
