技术特性 Features

• Class AB operation

• Internally matched to 50(ohm) system

• High output power
  P1dB = 47dBm (TYP.) @ f=5.8 ～ 6.4 GHz
• High power gain
  GLP = 9.5 dB (TYP.) @ f=5.8 ～ 6.4GHz
• High power added efficiency
  PAE = 35 % (TYP.) @ f=5.8 ～ 6.4GHz

应用领域 APPLICATION

Solid-state power amplifier for satellite earth-station communication transmitter and VSAT

订购信息 Ordering Information

• MGFC47V5864

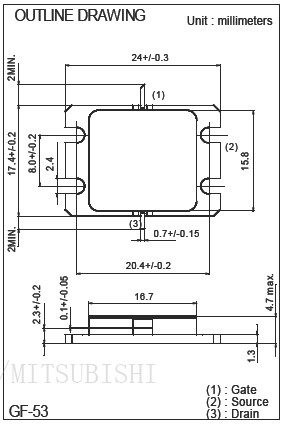

外观尺寸图 Outline Drawing
