MGFK38A3745 13.75 – 14.50 GHz BAND / 6W

The MGFK38A3745 is an internally impedance-matched GaAs power FET especially designed for use in 13.75 – 14.50 GHz band amplifiers. The hermetically sealed metal-ceramic package guarantees high reliability.

技术特性 Features
  • Class A operation
  • Internally matched to 50(ohm) system
  • High output power
    P1dB=6W (TYP.) @f=13.75 – 14.50GHz
  • High linear power gain
    GLP=8.0dB (TYP.) @f=13.75 – 14.50GHz
  • High power added efficiency
    P.A.E.=30% (TYP.) @f=13.75 – 14.50GHz
应用领域 APPLICATION

13.75 – 14.50 GHz band power amplifiers

订购信息 Ordering Information
  • MGFK38A3745

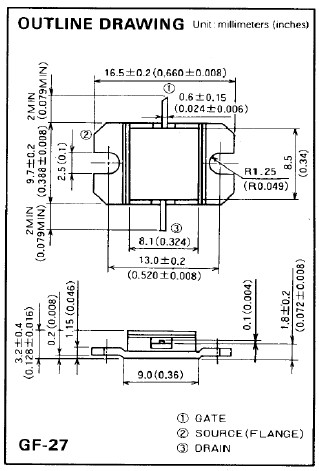

外观尺寸图 Outline Drawing

MGFK38A3745 外观尺寸图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
MGFK38A3745 数据资料DataSheet下载：PDF Rev.V2 2 页
