技术特性 Features

1. Adopting new 5th generation IGBT (CSTBT) chip, which
   performance is improved by 1μm fine rule process.
   For example, typical Vce(sat)=1.5V @Tj=125°C

2. I adopt the over-temperature conservation by Tj detection of
   CSTBT chip, and error output is possible from all each conservation
   upper and lower arm of IPM.

3. New small package Reduce the package size by 10%, thickness by 22% from S-DASH series.

   • 3φ 100A, 600V Current-sense IGBT type inverter

   • Monolithic gate drive & protection logic

   • Detection, protection & status indication circuits for, shortcircuit,
     over-temperature & under-voltage (P-Fo available from upper arm devices)

   • Acoustic noise-less 11kW class inverter application

   • UL Recognized Yellow Card No.E80276(N)File No.E80271

应用领域 APPLICATION

General purpose inverter, servo drives and other motor controls

PM100CLA060 产品实物图

订购信息 Ordering Information

• PM100CLA060

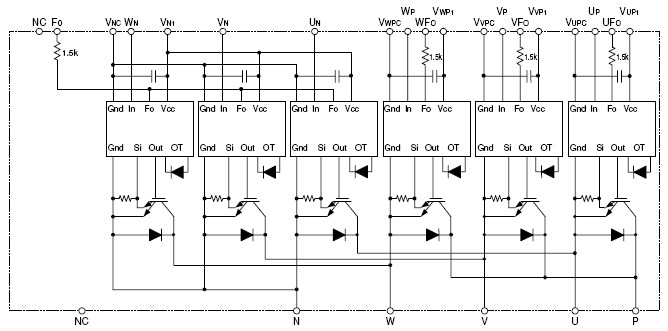

功能框图 Functional Block Diagram

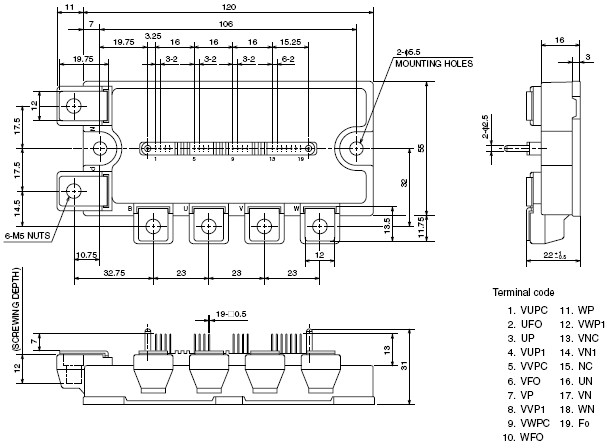

外观尺寸图 Outline Drawing
