PM100CLA120 FLAT-BASE TYPE INSULATED PACKAGE

技术特性 Features
  1. Adopting new 5th generation IGBT (CSTBT) chip, which performance is improved by 1μm fine rule process. For example, typical Vce(sat)=1.9V @Tj=125°C
  2. I adopt the over-temperature conservation by Tj detection of CSTBT chip, and error output is possible from all each conservation upper and lower arm of IPM.
    • 3φ 100A, 1200V Current-sense IGBT type inverter
    • Monolithic gate drive & protection logic
    • Detection, protection & status indication circuits for, shortcircuit,
      over-temperature & under-voltage (P-Fo available from upper arm devices)
    • Acoustic noise-less 18.5kW/22kW class inverter application
    • UL Recognized Yellow Card No.E80276(N)
    • No.E80271
应用领域 APPLICATION

General purpose inverter, servo drives and other motor controls

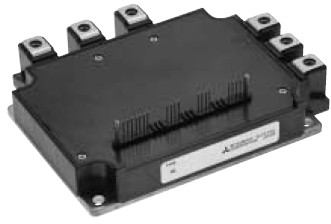

PM100CLA120 产品实物图

PM100CLA120 产品实物图

订购信息 Ordering Information
  • PM100CLA120

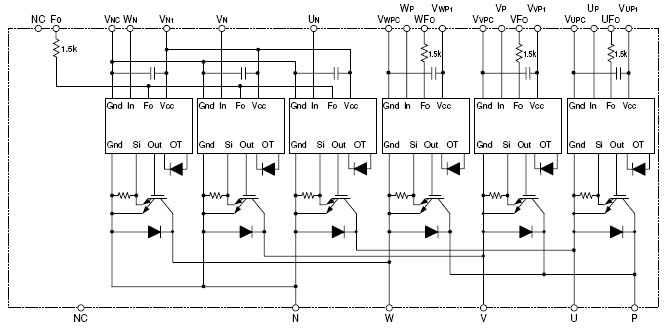

功能框图 Functional Block Diagram

PM100CLA120 功能图框

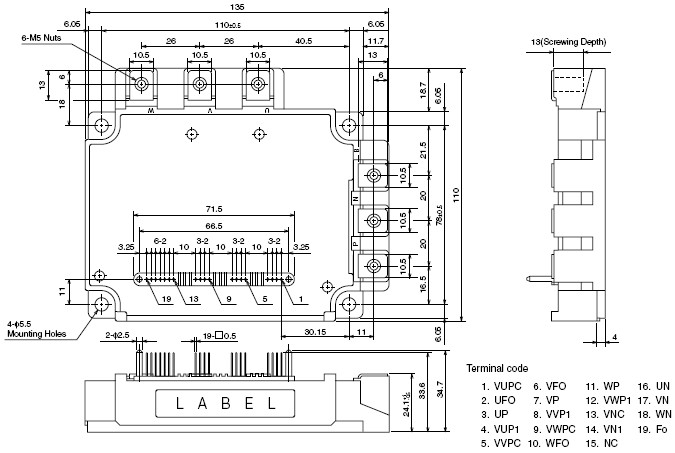

外观尺寸图 Outline Drawing

PM100CLA120 外观尺寸图


应用技术支持与电子电路设计开发资源下载 版本信息 大小
PM100CLA120 数据资料DataSheet下载:PDF Rev.V2 2 页
