技术特性 Features

• 3 phase 100A/600V CSTBTTM
  (The Current senser and the thermal senser with a build-in CSTBTTM.)

• Monolithic gate drive & protection logic

• Detection, protection & status indication circuits for, shortcircuit,over-temperature & under-voltage

应用领域 APPLICATION

General purpose inverter, servo drives and other motor controls

订购信息 Ordering Information

• PM100CS1D060

PM100CS1D060 产品实物图

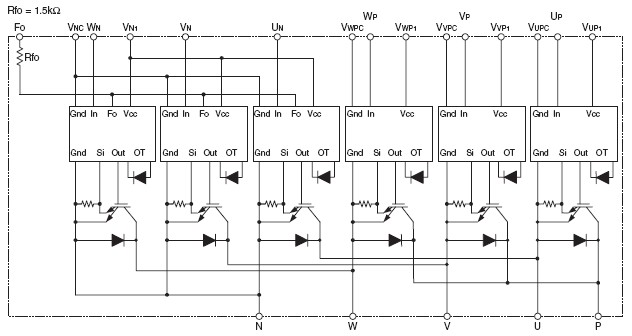

功能框图 Functional Block Diagram

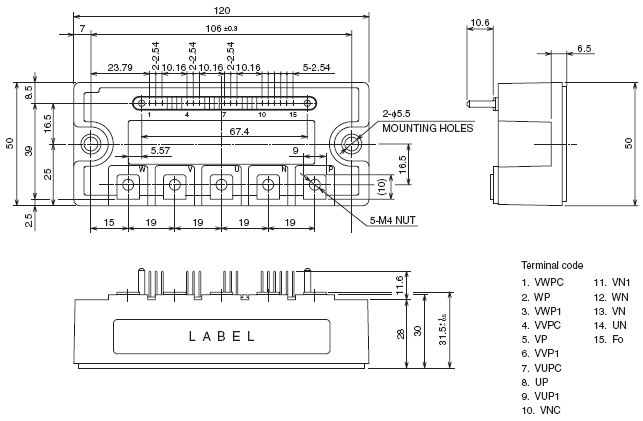

外观尺寸图 Outline Drawing
