PM150CL1A120 FLAT-BASE TYPE INSULATED PACKAGE

技术特性 Features
  1. Adopting new 5th generation Full-Gate CSTBTTM chip
  2. The over-temperature protection which detects the chip surface
    temperature of CSTBTTM is adopted.
  3. Error output signal is possible from all each protection upper
    and lower arm of IPM.
  4. Compatible L-series package.
    • 3φ 150A, 1200V Current-sense and temperature sense IGBT type inverter
    • Monolithic gate drive & protection logic
    • Detection, protection & status indication circuits for, shortcircuit,
      over-temperature & under-voltage (P-FO available from upper arm devices)
    • UL Recognized
订购信息 Ordering Information
  • PM150CL1A120

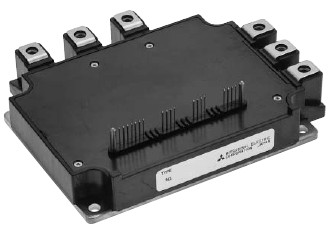

PM150CL1A120 产品实物图

PM150CL1A120 产品实物图

应用领域 APPLICATION

General purpose inverter, servo drives and other motor controls

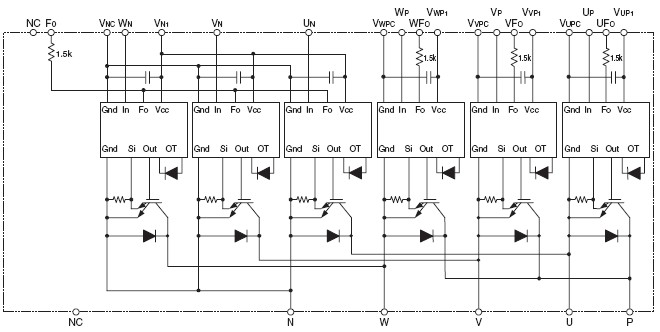

功能框图 Functional Block Diagram

PM150CL1A120 功能图框

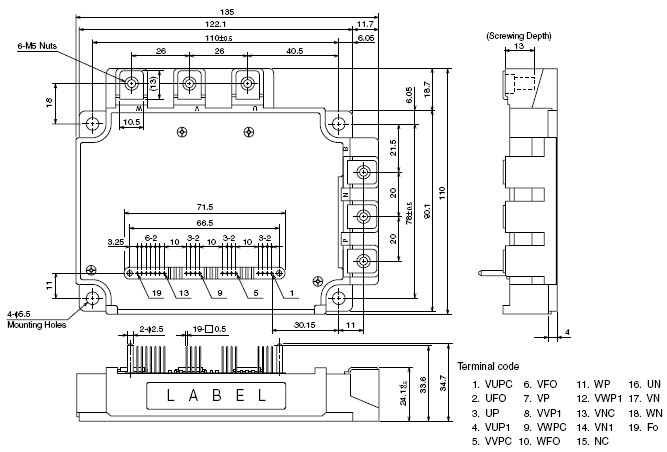

外观尺寸图 Outline Drawing

PM150CL1A120 外观尺寸图


应用技术支持与电子电路设计开发资源下载 版本信息 大小
PM150CL1A120 数据资料DataSheet下载:PDF Rev.V2 2 页
