技术特性 Features

1. Adopting new 4th generation planar IGBT chip, which performance
   is improved by 1μm fine rule process.For example, typical VCE(sat)=1.7V

2. Using new Diode which is designed to get soft reverse
   recovery characteristics.

   • 3φ 150A, 600V Current-sense IGBT for 15kHz switching

   • 50A, 600V Current-sense regenerative brake IGBT

   • Monolithic gate drive & protection logic

   • Detection, protection & status indication circuits for overcurrent,
     short-circuit, over-temperature & under-voltage

   • Acoustic noise-less 15/18.5kW class inverter application

   • UL Recognized Yellow Card No.E80276(N)File No.E80271

订购信息 Ordering Information

• PM150RSE060

应用领域 APPLICATION

General purpose inverter, servo drives and other motor controls

PM150RSE060 产品实物图

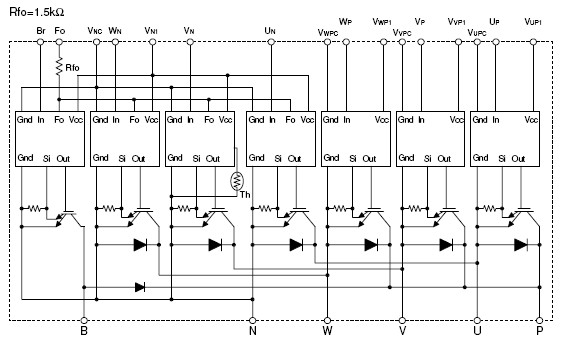

功能框图 Functional Block Diagram

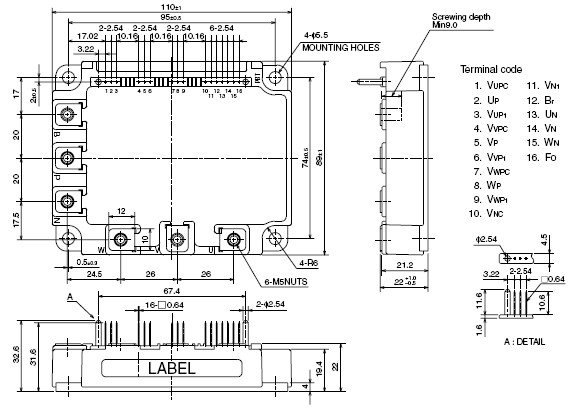

外观尺寸图 Outline Drawing
