技术特性 Features

1. Adopting new 4th generation planar IGBT chip, which performance
   is improved by 1μm fine rule process.

2. Using new Diode which is designed to get soft reverse
   recovery characteristics.

   • 3φ 150A, 1200V Current-sense IGBT for 15kHz switching

   • 50A, 1200V Current-sense regenerative brake IGBT

   • Monolithic gate drive & protection logic

   • Detection, protection & status indication circuits for overcurrent,
     short-circuit, over-temperature & under-voltage

   • Acoustic noise-less 30kW class inverter application

   • UL Recognized Yellow Card No.E80276(N)File No.E80271

订购信息 Ordering Information

• PM150RSE120

应用领域 APPLICATION

General purpose inverter, servo drives and other motor controls

PM150RSE120 产品实物图

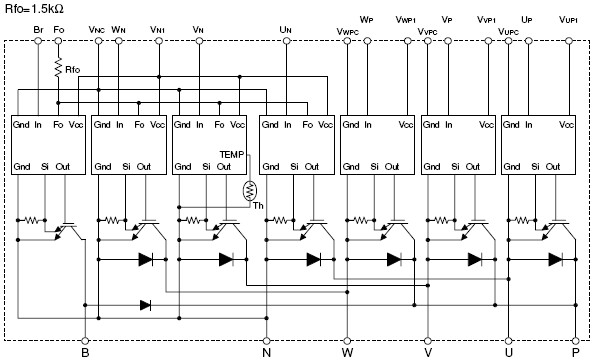

功能框图 Functional Block Diagram

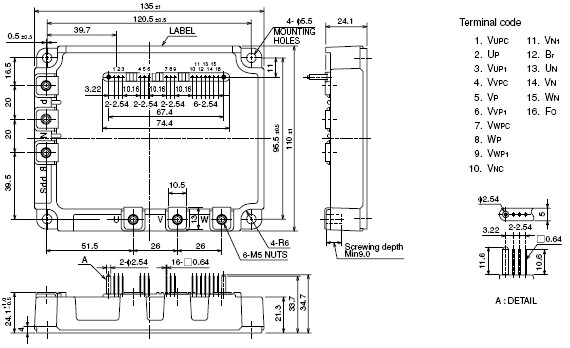

外观尺寸图 Outline Drawing
