PM200CL1A060 FLAT-BASE TYPE INSULATED PACKAGE

技术特性 Features
  1. Adopting new 5th generation Full-Gate CSTBTTM chip
  2. The over-temperature protection which detects the chip surface
    temperature of CSTBTTM is adopted.
  3. Error output signal is possible from all each protection upper
    and lower arm of IPM.
  4. Compatible L-series package.
    • 3φ 150A, 1200V Current-sense IGBT for 15kHz switching
    • 50A, 1200V Current-sense regenerative brake IGBT
    • Monolithic gate drive & protection logic
    • Detection, protection & status indication circuits for overcurrent,
      short-circuit, over-temperature & under-voltage
    • Acoustic noise-less 30kW class inverter application
    • UL Recognized Yellow Card No.E80276(N)File No.E80271
订购信息 Ordering Information
  • PM200CL1A060

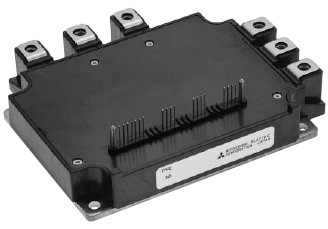

PM200CL1A060 产品实物图

PM200CL1A060 产品实物图

应用领域 APPLICATION

General purpose inverter, servo drives and other motor controls

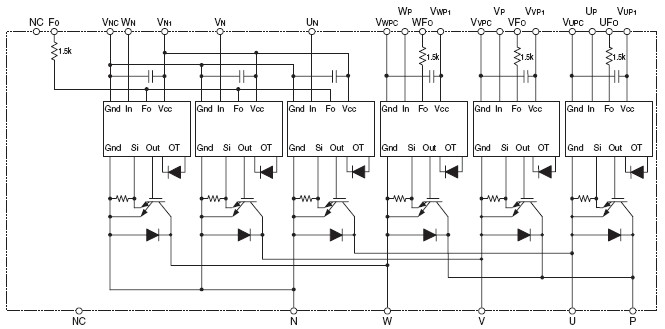

功能框图 Functional Block Diagram

PM200CL1A060 功能图框

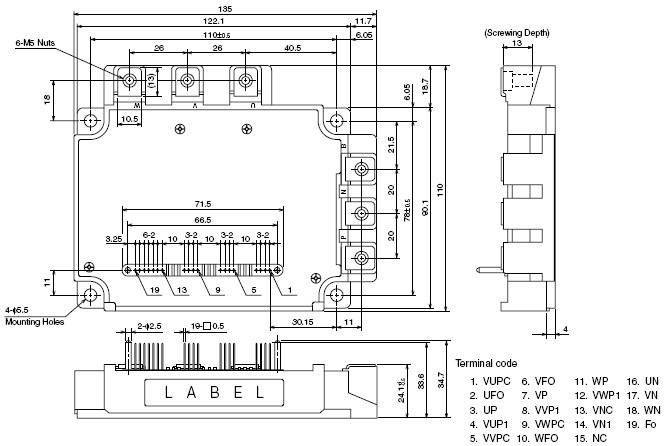

外观尺寸图 Outline Drawing

PM200CL1A060 外观尺寸图


应用技术支持与电子电路设计开发资源下载 版本信息 大小
PM200CL1A060 数据资料DataSheet下载:PDF Rev.V2 2 页
