PM200DVA120 FLAT-BASE TYPE INSULATED PACKAGE

技术特性 Features
  • 1φ 200A, 1200V Current-sense IGBT for 20kHz switching
  • Monolithic gate drive & protection logic
  • Detection, protection & status indication circuits for overcurrent,
    short-circuit, over-temperature & under-voltage
    (P-FO available from upper leg devices)
  • Acoustic noise-less 37kW class inverter application
  • UL Recognized
    Yellow Card No. E80276(N)
    File No. E80271
应用领域 APPLICATION

General purpose inverter, servo drives and other motor controls

订购信息 Ordering Information
  • PM200DVA120
PM200DVA120 产品实物图

PM200DVA120 产品实物图

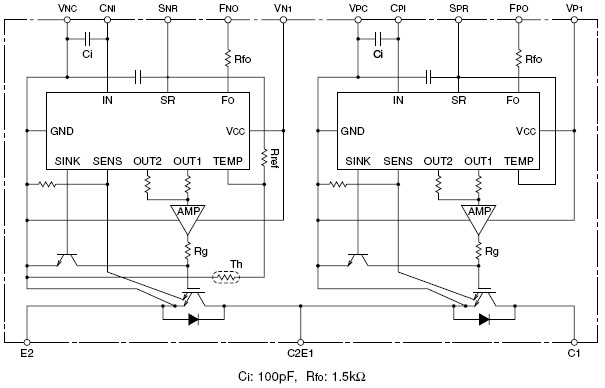

功能框图 Functional Block Diagram

PM200DVA120 功能图框

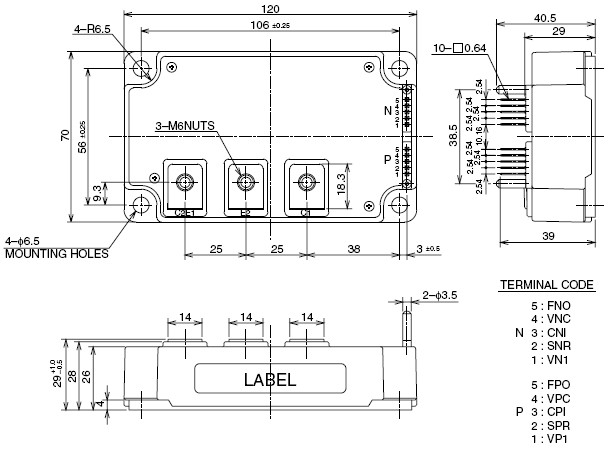

外观尺寸图 Outline Drawing

PM200DVA120 外观尺寸图


应用技术支持与电子电路设计开发资源下载 版本信息 大小
PM200DVA120 数据资料DataSheet下载:PDF Rev.V2 2 页
