PM200RL1A060 FLAT-BASE TYPE INSULATED PACKAGE

技术特性 Features
  1. Adopting new 5th generation Full-Gate CSTBTTM chip
  2. The over-temperature protection which detects the chip surface
    temperature of CSTBTTM is adopted.
  3. Error output signal is possible from all each protection upper
    and lower arm of IPM.
  4. Compatible L-series package.
    • 3φ 200A, 600V Current-sense and temperature sense
      IGBT type inverter
    • Monolithic gate drive & protection logic
    • Detection, protection & status indication circuits for, shortcircuit,
      over-temperature & under-voltage (P-FO available from upper arm devices)
    • UL Recognized
应用领域 APPLICATION

General purpose inverter, servo drives and other motor controls

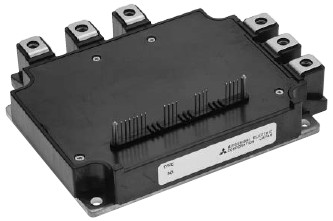

PM200RL1A060 产品实物图

PM200RL1A060 产品实物图

订购信息 Ordering Information
  • PM200RL1A060

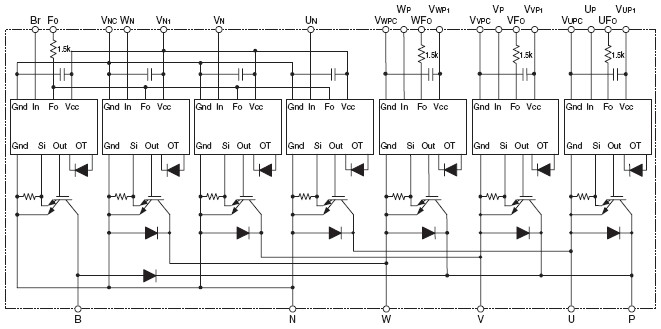

功能框图 Functional Block Diagram

PM200RL1A060 功能图框

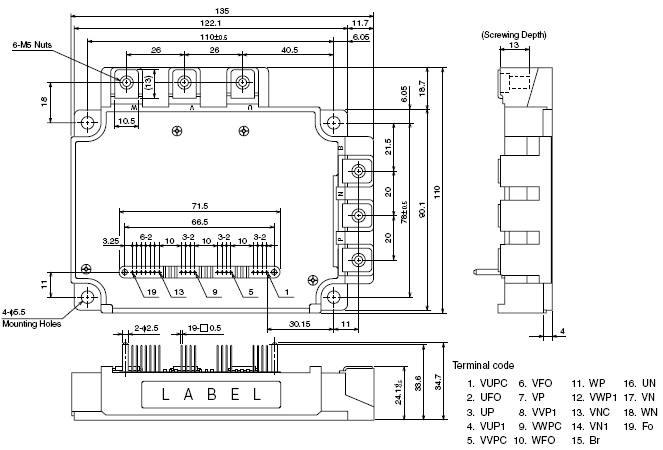

外观尺寸图 Outline Drawing

PM200RL1A060 外观尺寸图
