技术特性 Features

1. Adopting new 5th generation IGBT (CSTBT) chip, which
   performance is improved by 1μm fine rule process.
   For example, typical Vce(sat)=1.9V @Tj=125°C

2. I adopt the over-temperature conservation by Tj detection of
   CSTBT chip, and error output is possible from all each conservation
   upper and lower arm of IPM.

3. Current rating of brake part increased.
   60% for the current rating of inverter part.

   • 3φ 25A, 1200V Current-sense IGBT type inverter

   • 15A, 1200V Current-sense regenerative brake IGBT

   • Monolithic gate drive & protection logic

   • Detection, protection & status indication circuits for, shortcircuit,
     over-temperature & under-voltage (P-Fo available from upper arm devices)

   • Acoustic noise-less 3.7kW class inverter application

   • UL Recognized Yellow Card No.E80276(N) File No.E80271

订购信息 Ordering Information

• PM25RLA120

应用领域 APPLICATION

General purpose inverter, servo drives and other motor controls

PM25RLA120 产品实物图

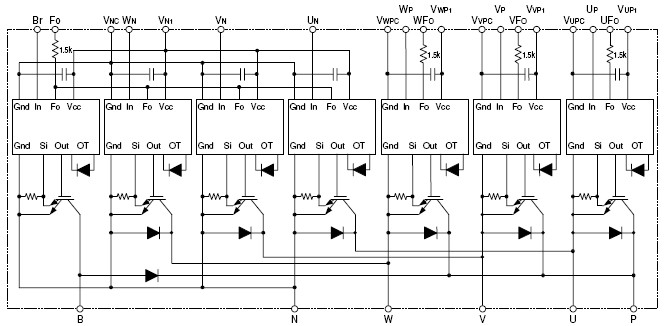

功能框图 Functional Block Diagram

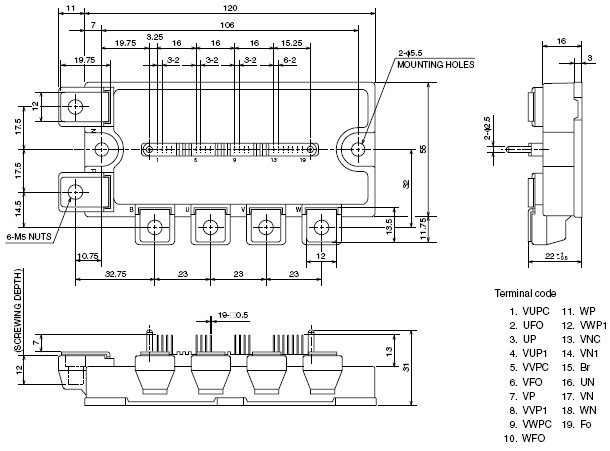

外观尺寸图 Outline Drawing
