PM300CLA060 FLAT-BASE TYPE INSULATED PACKAGE

技术特性 Features
  1. Adopting new 5th generation IGBT (CSTBT) chip, which
    performance is improved by 1μm fine rule process.
    For example, typical Vce(sat)=1.5V @Tj=125°C
  2. I adopt the over-temperature conservation by Tj detection of
    CSTBT chip, and error output is possible from all each conservation
    upper and lower arm of IPM.
    • 3φ 300A, 600V Current-sense IGBT type inverter
    • Monolithic gate drive & protection logic
    • Detection, protection & status indication circuits for, shortcircuit,
      over-temperature & under-voltage (P-Fo available from upper arm devices)
    • Acoustic noise-less 30kW class inverter application
    • UL Recognized Yellow Card No.E80276(N) File No.E80271
订购信息 Ordering Information
  • PM300CLA060

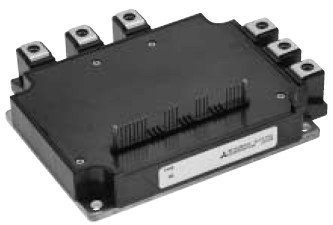

PM300CLA060 产品实物图

PM300CLA060 产品实物图

应用领域 APPLICATION

General purpose inverter, servo drives and other motor controls

功能框图 Functional Block Diagram

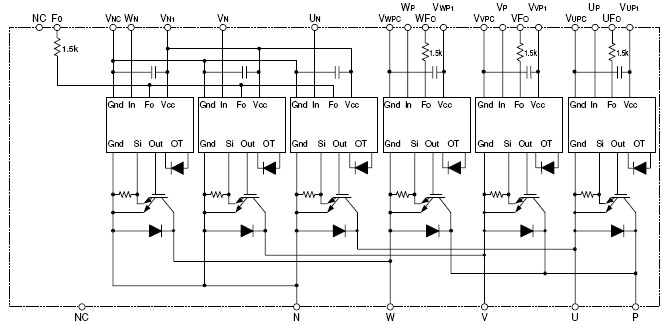

PM300CLA060 功能图框

外观尺寸图 Outline Drawing

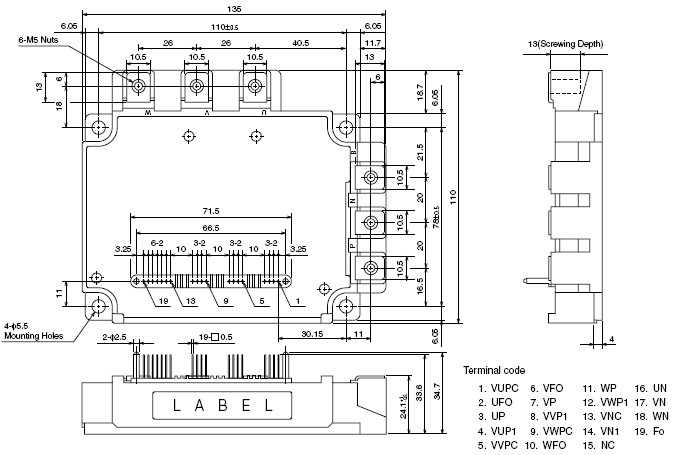

PM300CLA060 外观尺寸图
