技术特性 Features
- Adopting new 4th generation planar IGBT chip, which performance
is improved by 1μm fine rule process.For example, typical VCE(sat)=1.7V
- Using new Diode which is designed to get soft reverse recovery characteristics.
- 3φ 300A, 600V Current-sense IGBT for 15kHz switching
- Monolithic gate drive & protection logic
- Detection, protection & status indication circuits for overcurrent,
short-circuit, over-temperature & under-voltage(P-Fo available from upper leg devices)
- Acoustic noise-less 30kW class inverter application
- UL Recognized Yellow Card No.E80276(N) File No.E80271
订购信息 Ordering Information
PM300CSD060 产品实物图
![PM300CSD060 产品实物图](images/PM300CSD060.jpg)
|
应用领域 APPLICATION
General purpose inverter, servo drives and other motor controls

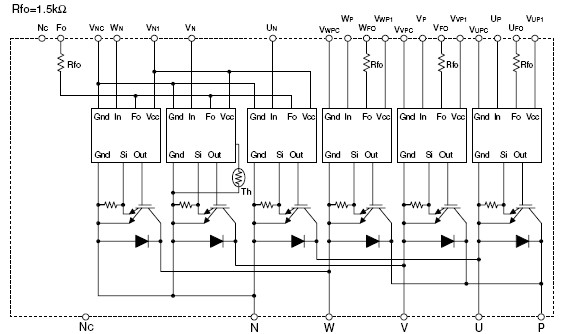

功能框图 Functional Block Diagram
![PM300CSD060 功能图框](images/PM300CSD060_Functional_Block_Diagram.jpg)

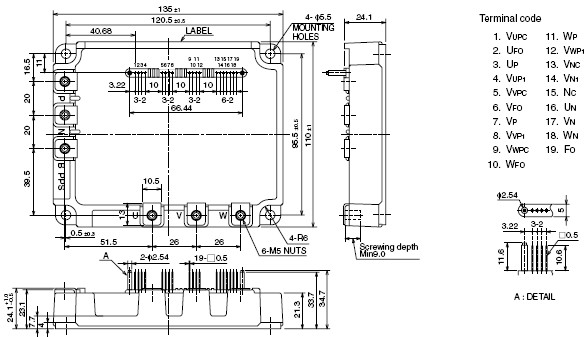

外观尺寸图 Outline Drawing
![PM300CSD060 外观尺寸图](images/PM300CSD060_outline_drawing.jpg)
|
