技术特性 Features

1. Adopting new 5th generation Full-Gate
   CSTBTTM chip

2. The over-temperature protection which
   detects the chip surface temperature of
   CSTBTTM is adopted.

3. Error output signal is possible from all
   each protection upper and lower arm of IPM.

4. Compatible V-series package.

   • Monolithic gate drive & protection logic

   • Detection, protection & status indication circuits for, short-circuit, over-temperature & under-voltage

订购信息 Ordering Information

• PM300DV1A120

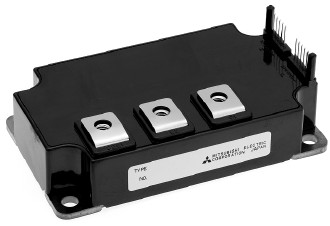

PM300DV1A120 产品实物图

应用领域 APPLICATION

General purpose inverter, servo drives and other motor controls

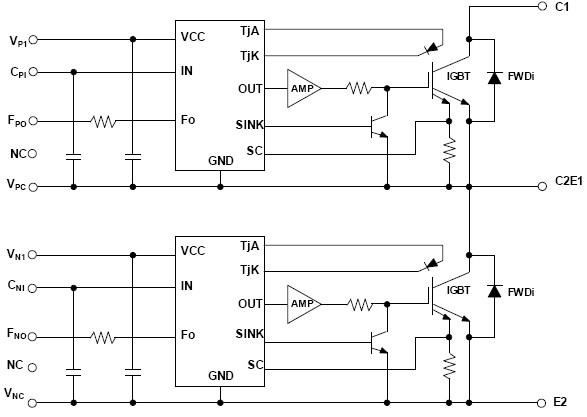

功能框图 Functional Block Diagram

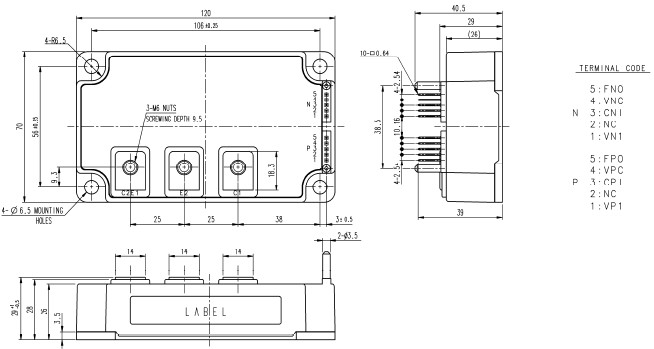

外观尺寸图 Outline Drawing
