技术特性 Features

• Single phase AC input, DC output IGBT/FWD converter bridge

• 600V, 20Arms (Input current)
• IGBTS driver circuit

• Control supply under-voltage (UV) protection

• Input interface : 5~15V line CMOS/TTL compatible, Schmitt Trigger receiver circuit (Active high)

应用领域 APPLICATION

AC100~200V Active-Converter for PFC (Power Factor Correction), of Air-conditioner and soon.

PS51259-A 产品实物图

订购信息 Ordering Information

• PS51259-A

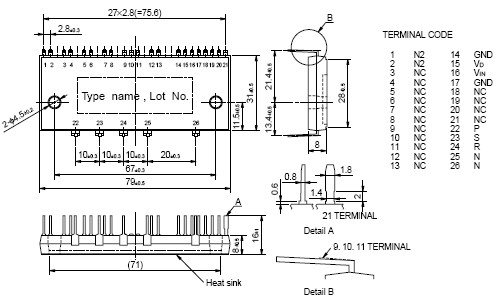

外观尺寸图 Outline Drawing
