RA01L9595M RoHS Compliance , 952-954MHz 1.4W 3.3V, 2 Stage Amp. For RFID READER / WRITER
The RA01L9595M is a 1.4-watt RF MOSFET Amplifier Module. The battery can be connected directly to the drain of the enhancement-mode MOSFET transistors. The output power and drain current increase as the gate voltage increases. With a gate voltage around 0.5V (minimum), output power and drain current increases substantially. The nominal output power becomes available at 1.5V (typical) and 2.0V (maximum). At VGG=2.0V, the typical gate current is 1mA.
技术特性 Features
订购信息 Ordering Information
|

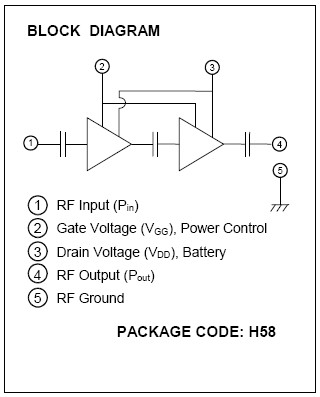

功能框图 Functional Block Diagram
|
| 应用技术支持与电子电路设计开发资源下载 | 版本信息 | 大小 |
| RA01L9595M 数据资料DataSheet下载：PDF | Rev.V2 | 2 页 |
