RA03M8087M RoHS Compliance , 806-870MHz 3.6W 7.2V, 2 Stage Amp. For PORTABLE RADIO

The RA03M8087M is a 3.6-watt RF MOSFET Amplifier Module for 7.2-volt portable radios that operate in the 806 to 870-MHz range. The battery can be connected directly to the drain of the enhancement-mode MOSFET transistors. Without the gate voltage (VGG=0V), only a small leakage current flows into the drain and the RF input signal attenuates up to 60 dB. The output power and drain current increase as the gate voltage increases. With a gate voltage around 2.5V (minimum), output power and drain current increases substantially. The nominal output power becomes available at 3V (typical) and 3.5V (maximum). At VGG=3.5V, the typical gate current is 1 mA. This module is designed for non-linear FM modulation, but may also be used for linear modulation by setting the drain quiescent current with the gate voltage and controlling the output power with the input power.

技术特性 Features
  • Enhancement-Mode MOSFET Transistors
    (IDD@0 @ VDD=7.2V, VGG=0V)
  • Pout>3.6W @ VDD=7.2V, VGG=3.5V, Pin=50mW
  • hT>32% @ Pout=3W (VGG control), VDD=7.2V, Pin=50mW
  • Broadband Frequency Range: 806-870MHz
  • Low-Power Control Current IGG=1mA (typ) at VGG=3.5V
  • Module Size: 30 x 10 x 5.4 mm
  • Linear operation is possible by setting the quiescent drain
    current with the gate voltage and controlling the output power
    with the input power.
订购信息 Ordering Information
  • RA03M8087M
  • RA03M8087M -101 Antistatic tray,50 modules/tray

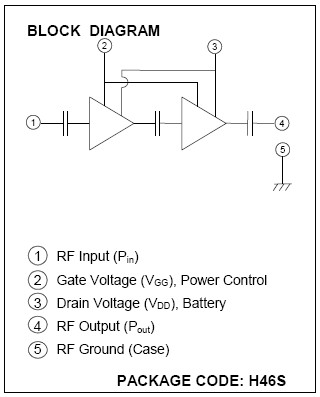

功能框图 Functional Block Diagram

RA03M8087M 功能图框
