RA05H8693M RoHS Compliance,866-928MHz 5W 14V, 3 Stage Amp
The RA05H8693M is a 5watt RF MOSFET Amplifier Module that operate in the 866 to 928MHz range. The battery can be connected directly to the drain of the enhancement-mode MOSFET transistors. The output power and drain current increase as the gate voltage increases. With a gate voltage around 3.5V (minimum), output power and drain current increases substantially. The nominal output power becomes available at 3.8V (typical) and 4V (maximum). At VGG=5V, the typical gate current is 1 mA.
技术特性 Features
订购信息 Ordering Information
|

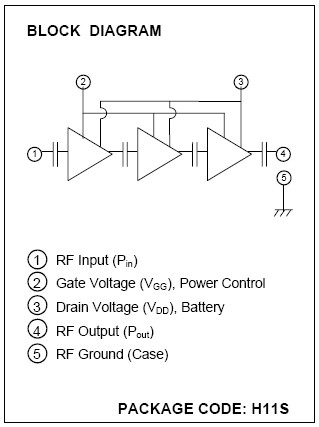

功能框图 Functional Block Diagram
|
| 应用技术支持与电子电路设计开发资源下载 | 版本信息 | 大小 |
| RA05H8693M 数据资料DataSheet下载：PDF | Rev.V2 | 2 页 |
