RA33H1516M1 RoHS Compliance, 154-162MHz 33W 12.5V 2 Stage Amp. For MOBILE RADIO

The RA33H1516M1 is a 33watt RF MOSFET Amplifier Module for 12.5volt mobile radios that operate in the 154- to 162MHz range. The battery can be connected directly to the drain of the enhancement-mode MOSFET transistors. The output power and drain current increase as the gate voltage increases. With a gate voltage around 3.0V (minimum), output power and drain current increases substantially. The nominal output power becomes available at 4V (typical) and 5V (maximum). At VGG=5V, the typical gate current is 1 mA. This module is designed for non-linear FM modulation.

技术特性 Features

Enhancement-Mode MOSFET Transistors
(IDD0 @ VDD=12.5V, VGG=0V)
Pout>33W, T>50% @ VDD=12.5V, VGG=5V, Pin=10mW
Broadband Frequency Range: 154-162MHz
Low-Power Control Current IGG=1mA (typ) at VGG=5V
Module Size: 46 x 14.4 x 6.3 mm

订购信息 Ordering Information

RA33H1516M1
RA33H1516M1-101 Antistatic tray,10 modules/tray

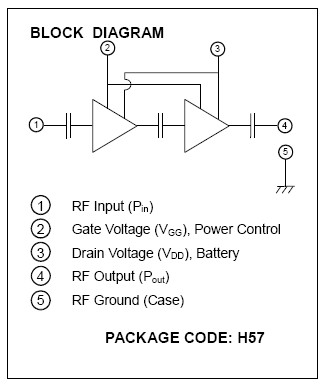

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
RA33H1516M1 数据资料DataSheet下载：PDF	Rev.V2	2 页
