技术特性 Features

• Supply with Tape and Reel. 500 Units per Reel.

• Employing Mold Package

• High Power and High Efficiency
  Pout=43Wtyp, Drain Effi.=60%typ
  @ Vds=12.5V Idq=0.5A Pin=3.0W f=530MHz
  Pout=45Wtyp, Drain Effi.=72%typ
  @ Vds=12.5V Idq=1.0A Pin=3.0W f=175MHz

• Integrated gate protection diode

应用领域 APPLICATION

For output stage of high power amplifiers in VHF/UHF band mobile radio sets.

订购信息 Ordering Information

• RD35HUF2

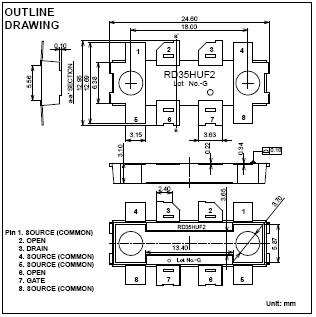

外观尺寸图 Outline Drawing
