技术特性 Features

• IO DC output current ...................... 20A

• VRRM Repetitive peak reverse voltage........ 400/800V

• VDRM Repetitive peak off-state voltage........ 400/800V

• 3 Phase Mix Bridge

• Insulated Type

• UL Recognized
  Yellow Card No. E80276 (N)
  File No. E80271

订购信息 Ordering Information

• TM10T3B-H

TM10T3B-H 产品实物图

应用领域 APPLICATION

DC motor control, NC equipment, AC motor control, contactless switches, electric furnace temperature control, light dimmers

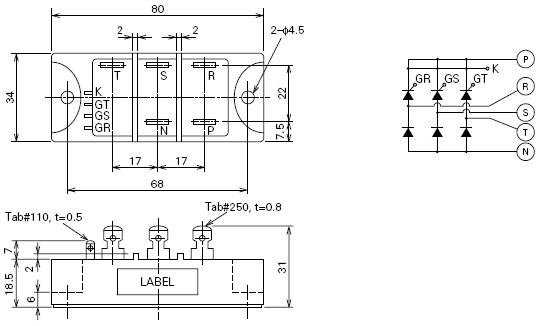

外观尺寸图 Outline Drawing
