技术特性 Features

• IT (AV) Average on-state current .......... 130A

• IF (AV) Average forward current .......... 130A

• VRRM Repetitive peak reverse voltage.... 1200/1600V

• VDRM Repetitive peak off-state voltage.... 1200/1600V

• MIX DOUBLE ARMS

• Insulated Type

• UL Recognized
  Yellow Card No. E80276 (N)
  File No. E80271

应用领域 APPLICATION

DC motor control, NC equipment, AC motor control, contactless switches, electric furnace temperature control, light dimmers

订购信息 Ordering Information

• TM130EZ-24
• TM130RZ-24
• TM130GZ-24
• TM130EZ-2H
• TM130RZ-2H
• TM130GZ-2H

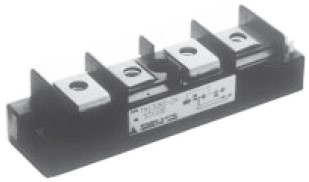

TM130EZ-24 产品实物图

外观尺寸图 Outline Drawing
