技术特性 Features

• IT (AV) Average on-state current .......... 200A

• IF (AV) Average forward current .......... 200A

• VRRM Repetitive peak reverse voltage.......... 400/800/1200/1600V

• VDRM Repetitive peak off-state voltage.......... 400/800/1200/1600V

• MIX DOUBLE ARMS

• Insulated Type

• UL Recognized
  Yellow Card No. E80276 (N)
  File No. E80271

应用领域 APPLICATION

DC motor control, NC equipment, AC motor control, contactless switches, electric furnace temperature control, light dimmers

外观尺寸图 Outline Drawing

订购信息 Ordering Information

• TM200EZ-M
• TM200RZ-M
• TM200GZ-M
• TM200EZ-H
• TM200RZ-H
• TM200GZ-H
• TM200EZ-24
• TM200RZ-24
• TM200GZ-24
• HTM200EZ-2H
• TM200RZ-2H
• TM200GZ-2H

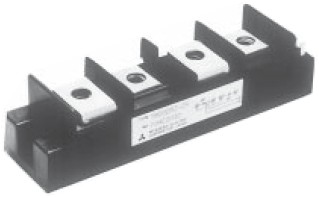

TM200EZ-24 产品实物图
