技术特性 Features

• IT (AV) Average on-state current .......... 400A

• VRRM Repetitive peak reverse voltage........ 400/800/1200/1600V

• VDRM Repetitive peak off-state voltage........ 400/800/1200/1600V

• DOUBLE ARMS

• Insulated Type

外观尺寸图 Outline Drawing

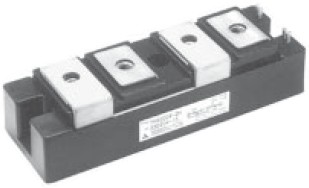

TM400DZ-24 产品实物图

应用领域 APPLICATION

DC motor control, NC equipment, AC motor control, Contactless switches, Electric furnace temperature control, Light dimmers

订购信息 Ordering Information

• TM400CZ-M
• TM400DZ-M
• TM400PZ-M
• TM400UZ-M
• TM400CZ-H
• TM400DZ-H
• TM400PZ-H
• TM400UZ-H
• TM400CZ-24
• TM400DZ-24
• TM400PZ-24
• TM400UZ-24
• TM400CZ-2H
• TM400DZ-2H
• TM400PZ-2H
• TM400UZ-2H
