FST3125:4-BIT BUS SWITCH
The ON Semiconductor FST3125 is a quad, high performance switch. The device is CMOS TTL compatible when operating between 4 and 5.5 Volts. The device exhibits extremely low RON and adds nearly zero propagation delay. The device adds no noise or ground bounce to the system. The device consists of four independent 1bit switches with separate Output Enable (OE) pins. Port A is connected to Port B when OE is low. If OE is high, the switch is high Z.
技术特性
- Less Than 0.25 nsMax Delay Through Switch
- Nearly Zero Standby Current
- No Circuit Bounce
- Control Inputs are TTL CMOS Compatible
- PinForPin Compatible With QS3125, FST3125, CBT3125
- All Popular Packages: TSSOP14, SOIC14
|

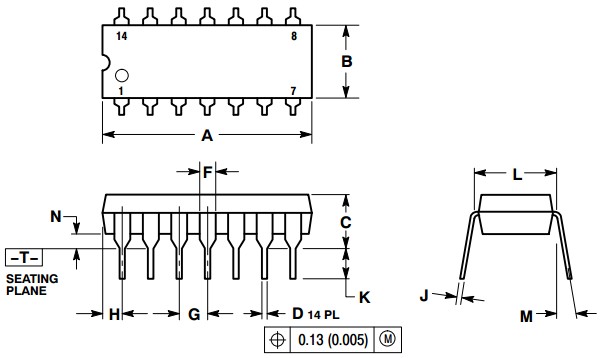

封装图 MARKING DIAGRAM
|
订购信息 Ordering Information
| 产品 |
状况 |
Compliance |
具体说明 |
封装 |
MSL* |
容器 |
预算价格 (1千个数量的单价） |
| 类型 |
外形 |
类型 |
数量 |
| FST3125DR2G |
Active |
|
4-BIT BUS SWITCH |
SOIC-14 |
751A-03 |
1 |
Tape and Reel |
2500 |
$0.1733 |
| FST3125DTR2G |
Active |
|
4-BIT BUS SWITCH |
TSSOP-14 |
948G-01 |
1 |
Tape and Reel |
2500 |
$0.1733 |
数据资料DataSheet下载
