IBIS4-6600:6.6 Megapixel CMOS Image Sensor
The IBIS4-6600 is a monochrome solid state CMOS image sensor that integrates complete analog image acquisition, and a digitizer and digital signal processing system on a single chip. This image sensor has a resolution of 6.6 megapixels with 2210 x 3002 active pixels. The image size is fully programmable for user-defined windows. The pixels are on a 3.5 µm pitch.
技术特性
- Resolution of 6.6 megapixels with 2210 x 3002 active pixels
- Image size is fully programmable for user-defined windows
- Pixels are on a 3.5 µm pitch
|

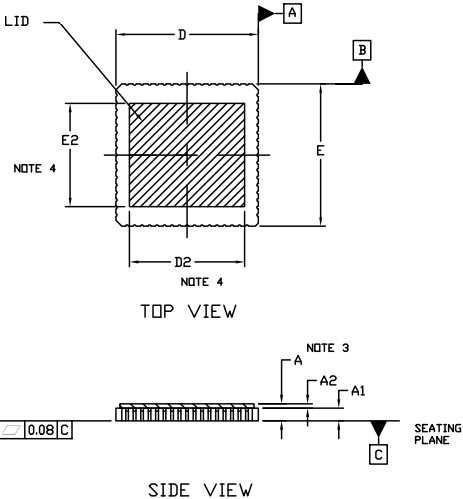

封装图 MARKING DIAGRAM
|
订购信息 Ordering Information
| 产品 |
状况 |
Compliance |
具体说明 |
封装 |
MSL* |
容器 |
预算价格 (1千个数量的单价） |
| 类型 |
外形 |
类型 |
数量 |
| NOII4SM6600A-QDC |
Active |
|
6.6 Megapixel CMOS Image Sensor, Mono, with Glass |
LCC-68 |
115AQ |
1 |
Tray JEDEC |
9 |
|
数据资料DataSheet下载
