LM211:Single Comparator
The ability to operate from a single power supply of 5.0 V to 30 V or +/-15 V split supplies, as commonly used with operational amplifiers, makes the LM211/LM311 a truly versatile comparator. Moreover, the inputs of the device can be isolated from system ground while the output can drive loads referenced either to ground, the VCC or the VEE supply. This flexibility makes it possible to drive DTL, RTL, TTL, or MOS logic. The output can also switch voltages to 50 V at currents to 50 mA. Thus the LM211/LM311 can be used to drive relays, lamps or solenoids.
|

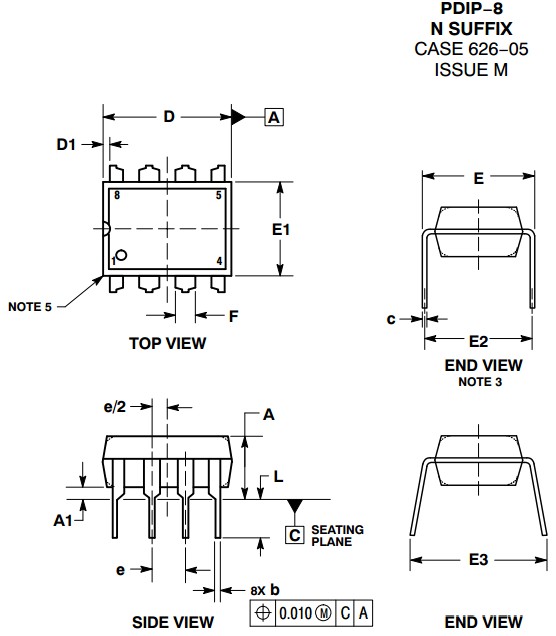

封装图 PACKAGE DIMENSIONS
|
订购信息 Ordering Information
| 产品 |
状况 |
Compliance |
具体说明 |
封装 |
MSL* |
容器 |
预算价格 (1千个数量的单价） |
| 类型 |
外形 |
类型 |
数量 |
| LM211DG |
Active |
|
Single Comparator |
SOIC-8 |
751-07 |
1 |
Tube |
98 |
$0.3467 |
| LM211DR2G |
Active |
|
Single Comparator |
SOIC-8 |
751-07 |
1 |
Tape and Reel |
2500 |
$0.3467 |
| LM211D |
Last Shipments |
|
Single Comparator |
SOIC-8 |
751-07 |
1 |
Tube |
98 |
|
| LM211DR2 |
Last Shipments  |
|
Single Comparator |
SOIC-8 |
751-07 |
1 |
Tape and Reel |
2500 |
|
数据资料DataSheet下载
