LMV339:Quad General Purpose, Low Voltage Comparator
The LMV331 is a single channel, general purpose, low voltage comparator. The LMV393 and LMV339 are dual and quad channel versions, respectively. The LMV331/393/339 are specified for 2.7V to 5.0 volt performance, have excellent input common-mode range, low quiescent current, and are available in several space saving packages. The LMV331 is available in a 5-pin SC70 and a TSOP-5 package, the LMV393 is available in an 8-pin Micro8¿ and a SOIC-8 package, and the LMV339 is available in a 14-pin SOIC14 and a TSSOP14 package. The LMV331/393/339 are cost effective solutions for applications where space saving, low voltage operation, and low power are the primary specifications in circuit design for portable applications.
技术特性
- Guaranteed 2.7 V and 5.0 V Performance
- Input common-mode voltage range extends to ground
- Open drain output for Wired-OR applications
- Low Quiescent Current: 60 A/channel TYP @ 5.0 V
- Low Saturation Voltage 200 mV TYP @ 5.0 V
- Propagation Delay 200 ns TYP @ 5.0 V
应用
- Battery Monitors
- General Purpose Low Voltage Applications
终端产品
- Notebook and PDA applications
- General Purpose Portable Devices
|

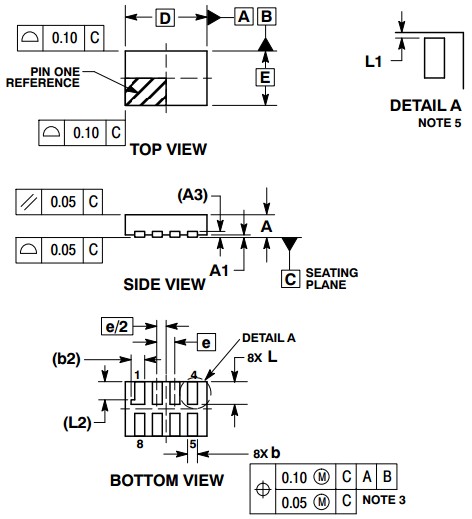

封装图 PACKAGE DIMENSIONS
|
订购信息 Ordering Information
| 产品 |
状况 |
Compliance |
具体说明 |
封装 |
MSL* |
容器 |
预算价格 (1千个数量的单价） |
| 类型 |
外形 |
类型 |
数量 |
| LMV339DR2G |
Active |
|
Quad General Purpose, Low Voltage Comparator |
SOIC-14 |
751A-03 |
3 |
Tape and Reel |
2500 |
$0.3333 |
| LMV339DTBR2G |
Active |
|
Quad General Purpose, Low Voltage Comparator |
TSSOP-14 |
948G-01 |
3 |
Tape and Reel |
2500 |
$0.33 |
数据资料DataSheet下载
