LV0111CF:Ambient Light Sensor with Standby Function, Logarithmic Current Output
LV0111CF is a Photo IC for micro-sized illumination sensor which has the characteristics of spectral response similar to that of human eyes. It is suitable for the applications like mobile phone (for Digital-TV, One-segment), LCD-TV, laptop computer, PDA, DSC and Camcorder. It is goods for a free halogen.
技术特性
- Logarithm current output
- Excellent visual sensitivity characteristics
- Built-in sleep function
- Low electric current consumption
应用
终端产品
- Feature phone, Smart phone..
- Digital TV:(CRT, LCD, OLED..)
- Laptop-PC, Tablet-PC, PDA..
- DSC, DVC, DSLR, Mirrorless..
|

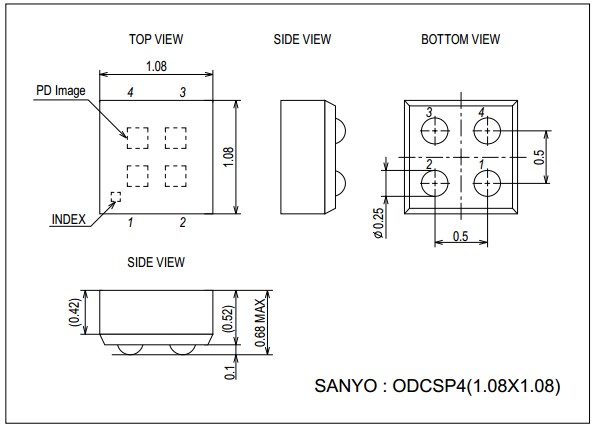

封装图 MARKING DIAGRAM
|
订购信息 Ordering Information
| 产品 |
状况 |
Compliance |
具体说明 |
封装 |
MSL* |
容器 |
预算价格 (1千个数量的单价） |
| 类型 |
外形 |
类型 |
数量 |
| LV0111CF-TLM-H |
Active |
|
Ambient Light Sensor with Standby Function, Logarithmic Current Output |
ODCSP-4J |
570AD |
3 |
Tape and Reel |
5000 |
$0.804 |
数据资料DataSheet下载
