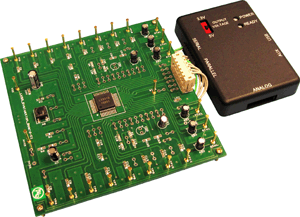

LV3319PMGEVB:EVABOARD FOR LV3319PM
The LV3319PM is an electronic volume and tone IC implements a rich set of audio control functions with a minimal number of external components. Functions include input selection switching function, an input gain, volume, loudness, balance, fader, general-purpose ports and bass/mid/treble control.
评估板信息
| 评估板 | 状况 | 无铅(Pb-free) | 简短说明 | 所用产品 |
|---|---|---|---|---|
| LV3319PMGEVB | Active |  |
EVABOARD FOR LV3319PM | LV3319PM-TLM-E |
技术文档
| 类型 | 文档标题 | 文档编号 | 修订号 |
| Eval Board: BOM | LV3319PMGEVB Bill of Materials ROHS Compliant | LV3319PMGEVB_BOM_ROHS.PDF | 0 |
| Eval Board: Gerber | LV3319PMGEVB Gerber Layout Files (Zip Format) | LV3319PMGEVB_GERBER.ZIP | 3 |
| Eval Board: Schematic | LV3319PMGEVB Schematic | LV3319PMGEVB_SCHEMATIC.PDF | 0 |
| Eval Board: Test Procedure | LV3319PMGEVB Test Procedure | LV3319PMGEVB_TEST_PROCEDURE.PDF | 0 |
| Software | LV3319PMGEVB Software | LV3319PMGEVB_SOFTWARE.ZIP - 4908.0 KB | 0 |
