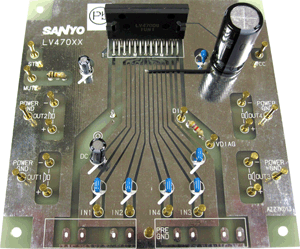

LV47004PGEVB:EVABOARD FOR LV47004P
The LV47004P is the IC for 4-channel BTL power amplifier that is developed for car audio system. Pch DMOS in the upper side of the output stage and Nch DMOS in the lower side of the output stage are complimentary. High power and high quality sound are realized by that. This IC incorporate various functions (standby switch, muting function, and various protection circuit) necessary for car audio system. Also, it has a self-diagnosis function.
评估板信息
| 评估板 | 状况 | 无铅(Pb-free) | 简短说明 | 所用产品 |
|---|---|---|---|---|
| LV47004PGEVB | Active |  |
EVABOARD FOR LV47004P | LV47004P-E |
技术文档
| 类型 | 文档标题 | 文档编号 | 修订号 |
| Eval Board: BOM | LV47004PGEVB Bill of Materials ROHS Compliant | LV47004PGEVB_BOM_ROHS.PDF | 0 |
| Eval Board: Gerber | LV47004PGEVB Gerber Layout Files (Zip Format) | LV47004PGEVB_GERBER.ZIP | 0 |
| Eval Board: Schematic | LV47004PGEVB Schematic | LV47004PGEVB_SCHEMATIC.PDF | 0 |
| Eval Board: Test Procedure | LV47004PGEVB Test Procedure | LV47004PGEVB_TEST_PROCEDURE.PDF | 0 |
