MC74LCX16245: Low Voltage CMOS 16-Bit Transceiver

The MC74LCX16245 is a high performance, non-inverting 16-bit transceiver operating from a 2.3 to 3.6V supply. The device is byte controlled. Each byte has separate Output Enable inputs which can be tied together for full 16-bit operation. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A VIspecification of 5.5V allows MC74LCX16245 inputs to be safely driven from 5V devices. The MC74LCX16245 is suitable for memory address driving and all TTL level bus oriented transceiver applications.

技术特性

Designed for 2.3 to 3.6V VCC Operation
4.5ns Maximum tpd
5V Tolerant - Interface Capability With 5V TTL Logic
Supports Live Insertion and Withdrawal
IOFF Specification Guarantees High Impedance When VCC = 0V
LVTTL Compatible
LVCMOS Compatible
24mA Balanced Output Sink and Source Capability
Near Zero Static Supply Current in All Three Logic States (20mA)
Substantially Reduces System Power Requirements
Latchup Performance Exceeds 500mA
ESD Performance: Human Body Model >2000V;Machine Model >200V
These are Pb-Free Devices

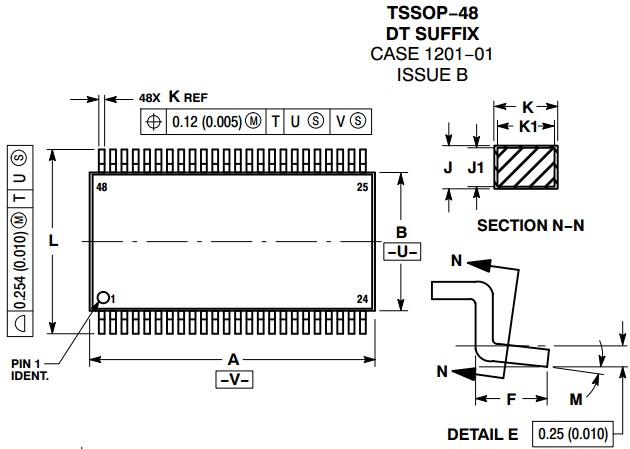

封装图 MARKING DIAGRAM

订购信息 Ordering Information

产品

状况

Compliance

具体说明

封装

MSL*

容器

预算价格 (1千个数量的单价）

类型

外形

类型

数量

M74LCX16245DTR2G

Active

Pb-free

Halide free

Low Voltage CMOS 16-Bit Transceiver

TSSOP-48

1201-01

Tape and Reel

2500

$0.8

MC74LCX16245DTG
