MC74LCX245:Octal Transceiver, CMOS, Low Voltage
The MC74LCX245 is a high performance, non-inverting octal transceiver operating from a 2.0 to 5.5V supply. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A VI specification of 5.5V allows MC74LCX245 inputs to be safely driven from 5V devices. The MC74LCX245 is suitable for memory address driving and all TTL level bus oriented transceiver applications.
技术特性
- Designed for 2.0 to 5.5V VCC Operation
- 5V Tolerant Interface Capability With 5V TTL Logic
- Supports Live Insertion and Withdrawal
- IOFF Specification Guarantees High Impedance When VCC = 0V
- LVTTL Compatible
- LVCMOS Compatible
- 24mA Balanced Output Sink and Source Capability
- Near Zero Static Supply Current in All Three Logic States (10µA) Substantially Reduces System Power Requirements
- Latchup Performance Exceeds 500mA
- ESD Performance: Human Body Model >2000V; Machine Model >200V PIN
- Pb-Free Packages
|
封装图 MARKING DIAGRAM
|
订购信息 Ordering Information
| 产品 |
状况 |
Compliance |
具体说明 |
封装 |
MSL* |
容器 |
预算价格 (1千个数量的单价） |
| 类型 |
外形 |
类型 |
数量 |
| MC74LCX245DTG |
Active |
|
Octal Transceiver, CMOS, Low Voltage |
TSSOP-20 |
948E-02 |
1 |
Tube |
75 |
$0.2667 |
| MC74LCX245DTR2G |
Active |
|
Octal Transceiver, CMOS, Low Voltage |
TSSOP-20 |
948E-02 |
1 |
Tape and Reel |
2500 |
$0.2667 |
| MC74LCX245DWG |
Active |
|
Octal Transceiver, CMOS, Low Voltage |

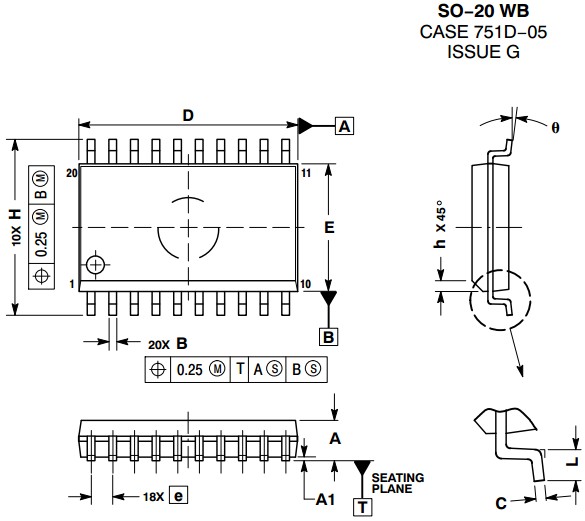

SOIC-20W |
751D-05 |
3 |
Tube |
38 |
$0.2933 |
| MC74LCX245DWR2G |
Active |
|
Octal Transceiver, CMOS, Low Voltage |
SOIC-20W |
751D-05 |
3 |
Tape and Reel |
1000 |
$0.2933 |
| MC74LCX245MNTWG |
Active |
|
Octal Transceiver, CMOS, Low Voltage |
QFN-20 |
485AA |
1 |
Tape and Reel |
3000 |
$0.2933 |
