NB6L295MMNGEVB:EVAL BOARD
The NB6L295 Evaluation Board was designed to provide a flexible and convenient platform to quickly evaluate, characterize and verify the operation and performance of the NB6L295MNG (LVPECL) and NB6L295MMNG (CML) Dual Channel Programmable Delay. The NB6L295M Evaluation Board was also designed to accommodate a custom QFN-24 socket. Therefore, some external components were installed on the bottom side of the board.
特性
|

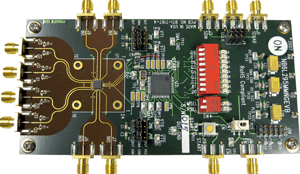

NB6L295MMNGEVB 实物图
|
评估板信息
| 评估板 |
状况 |
无铅(Pb-free) |
简短说明 |
所用产品 |
| NB6L295MMNGEVB |
Active |
|
NB6L295MMNGEVB:EVAL BOARD |
NB6L295MMNG |
技术文档
| 类型 |
文档标题 |
文档编号 |
修订号 |
| Eval Board: Manual |
NB6L295MNG / NB6L295MMNG Evaluation Board User's Manual |
EVBUM2082/D - 564.0 KB |
3 |
