NCN7201:2:1 Gigabit Ethernet LAN Switch with Power-down Feature
The NCN7201 is an 8-channel, bidirectional Ethernet switch featuring a power shutdown feature with minimal current consumption. The NCN7201 is an upgraded version of the NCN7200, offering improved performance on the data lines while still maintaining backwards compatibility. This switch is compatible with 10/100/1000 Base-T Ethernet standards, providing high bandwidth and low return loss. Three additional lines are provided for status indicator LEDs that switch. ESD protection is built into the switch. This device can be used to route signals between a single Ethernet transceiver and an RJ45 connector and a docking station. The NCN7201 comes in a 42-pin WQFN package (3.5 mm x 9 mm, 0.5 mm pitch).
技术特性
- Power-down Feature
- Three extra channels facilitate LED switching
- ESD Performance: 8 kV Human Body Model
- Fully Specified for Power Supply Range: 3 V to 3.6 V
- Insertion loss of 2.7 dB at 1 GHz
终端产品
- Desktop Computers
- Laptops
- Routers and switches
应用
- Signal Routing for 10BASE-T
- Signal Routing for 100BASE-TX
- Signal Routing for 1000BASE-T (Gigabit Ethernet)
|

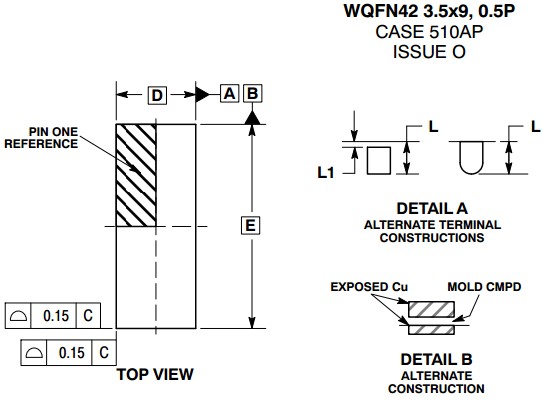

封装图 MARKING DIAGRAM
|
订购信息 Ordering Information
| 产品 |
状况 |
Compliance |
具体说明 |
封装 |
MSL* |
容器 |
预算价格 (1千个数量的单价） |
| 类型 |
外形 |
类型 |
数量 |
| NCN7201MTTWG |
Active |
|
2:1 Gigabit Ethernet LAN Switch with Power-down Feature |
WQFN-42 |
510AP |
1 |
Tape and Reel |
2000 |
$0.6667 |
数据资料DataSheet下载
