NCP5030MTTXGEVB:High Power Lighting Evaluation Board
The NCP5030 is a fixed frequency PWM buck-boost converter optimized for constant current applications such as driving high-powered white LED. The buck-boost is implemented in an H-bridge topology and has an adaptive architecture where it operates in one of three modes: boost, buck-boost, or buck depending on the input and load condition. This device has been designed with high-efficiency for use in portable applications and is capable of driving up to 1.2A pulse current and 900mA continuous current into a high power LED for camera flash, flashlight, torch and similar applications. This demo board demonstrates the overall NCP5030 capabilities and offers very easy current programming. The output current is fully configurable via the usage of 4 external resistors and corresponding jumper headers.
技术特性
- 2.7 to 5.5 V Input Voltage Range
- Vout to 24 V Output Compliance Allows up 5 LEDs Drive in Series
- Built-in Overvoltage Protection
- Inductor Based Current Brings up to 90% Efficiency
- Constant Output Current Regulation
- 0.3 uA Standby Quiescent Current
- Includes Dimming Function (PWM)
- Enable Function Driven Directly from Low Battery Voltage Source
- Automatic LEDs Current Matching
- Thermal Shutdown Protection
- All Pins are Fully ESD Protected
- Low EMI Radiation
- Pb-free Package is available
|

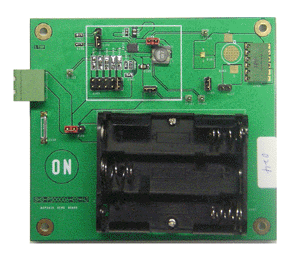

NCP5030MTTXGEVB 实物图
|
评估板信息
| 评估板 |
状况 |
无铅(Pb-free) |
简短说明 |
所用产品 |
| NCP5030MTTXGEVB |
Active |
 |
High Power Lighting Evaluation Board |
NCP5030MTTXG |
